Same model may have multiple batches, images only for reference.

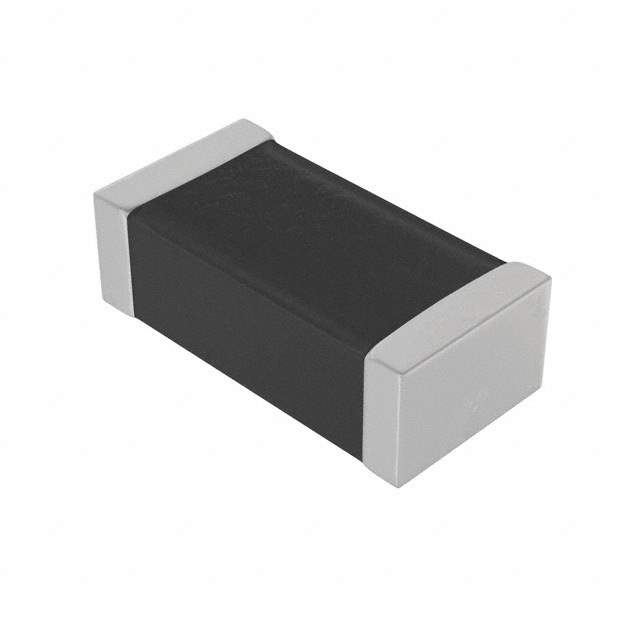

744901022 Real Image
Same model may have multiple batches, images only for reference.

744901022

Part No 744901022
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description WE-TCI Thinfilm Chip Inductor | FIXED IND 2.2NH 440MA 300 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Thin Film
Inductance 2.2nH
Tolerance ±0.1nH
Current Rating (Amps) 440mA
Shielding Unshielded
DC Resistance (DCR) 300mOhm Max
Q at Freq 13 at 500MHz
Frequency - Self Resonant 8GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 500MHz
Mounting Style SMD
Manufacturer Package 0402 (1005 Metric)
Supplier Device Package 0402 (1005 Metric)
Parts Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Maximum) 0.016" (0.40mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130114-744901022
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744901022 CAD Model

Description

The Wurth Electronics Inc. 1130114-744901022 is a Thin Film SMD Inductor with an inductance of 2.2nH and tolerance of ±0.1nH.

  • DC resistance: 300mOhm Max
  • Current rating: 440mA
  • Frequency self-resonant: 8GHz
  • Q @ frequency: 13 @ 500MHz
  • Shielded: unshielded
  • Supplier device package: 0402 (1005 Metric)
  • Temperature range: -40°C ~ 125°C
  • Suitable for use in: Inductors, Coils, and Chokes
  • Parts dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height seated (maximum): 0.016" (0.40mm)
  • Product has: A balance supply and demand status and a medium popularity
