Products specifications

Category Switches - Tactile Switches
Mfr E-Switch
Series TL3301
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 7.30mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 160gf
Ingress Protection -
Features -
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number TL3301
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376579-TL3301EF160QG
Ultra Librarian 3D Model Ultra Librarian TL3301EF160QG CAD Model

Description

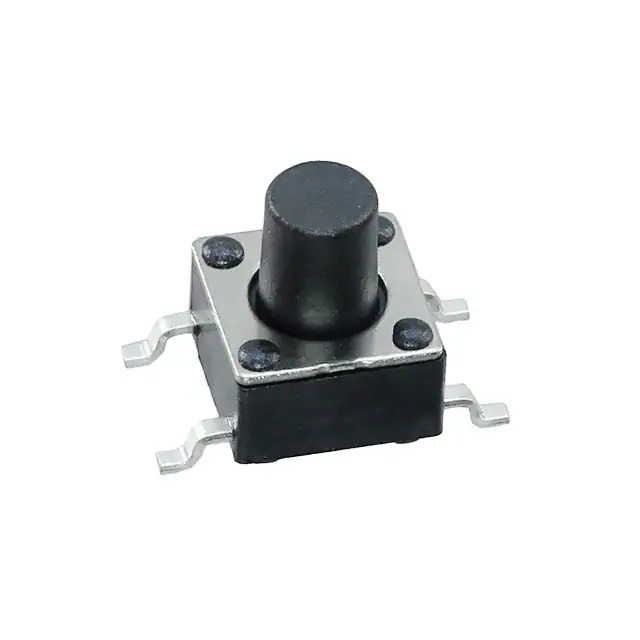

The TL3301EF160QG is a tactile switch manufactured by E-Switch.

  • Series: TL3301
  • Mounting Type: Surface Mount
  • Temperature Range: -20°C to 70°C
  • Circuit Configuration: SPST-NO
  • Actuator Type: Standard
  • Actuator Height off PCB: 7.30mm
  • Illumination Type: Non-Illuminated
  • Operating Force: 160gf
  • Mechanical Life: 100,000 cycles
  • HTSUS Code: 8536.50.9031
  • REACH Status: Unaffected
