Same model may have multiple batches, images only for reference.

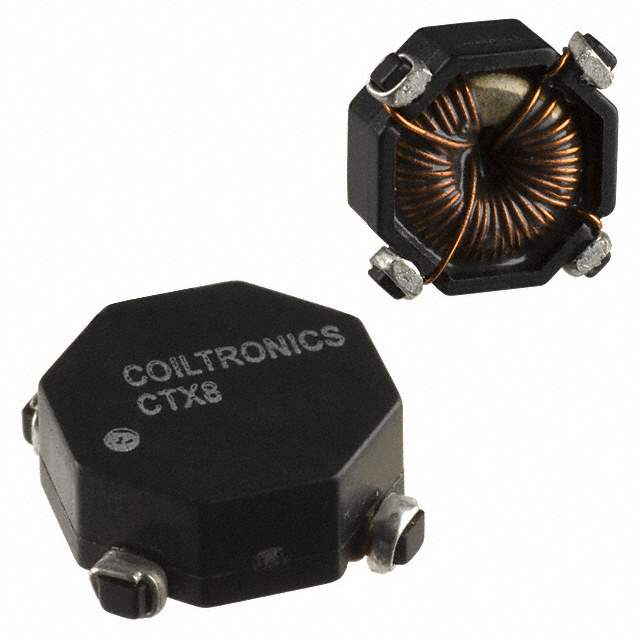

CTX8-4P Real Image
Same model may have multiple batches, images only for reference.

CTX8-4P

Part No CTX8-4P
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 7.81UH SMD
Datasheet
CTX8-4P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 31.23μH
Inductance - Connected In Parallel 7.81μH
Tolerance ±20%
Current Rating - Parallel 3A
Current Rating - Series 1.5A
DC Resistance (DCR) - Parallel 33 mOhm Max
DC Resistance (DCR) - Series 131 mOhm Max
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height 0.250" (6.35mm)
Win Source Part Number 202978-CTX8-4P
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CTX8-4P CAD Model

Description

CTX8-4P

The CTX8-4P stands out for its innovative design and reliability. It is suitable for both standard and custom electronic configurations.

  • Applications: Renewable energy systems, Embedded systems, Instrumentation
  • Features & Benefits: Innovative design, Reliable performance, Customizable for various needs
  • Additional Details: This component is crafted to offer superior operational reliability and can be customized to meet specific requirements, ensuring optimal performance in diverse environments.
