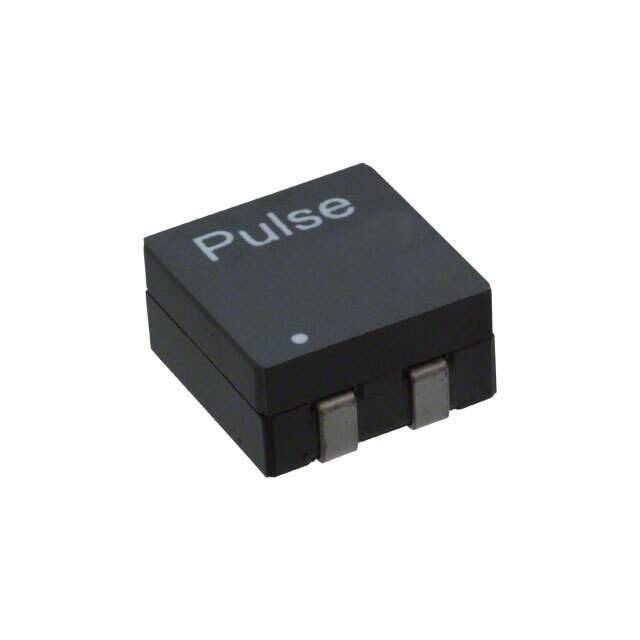

PA0766.561NLT Real Image
Same model may have multiple batches, images only for reference.

PA0766.561NLT

Part No PA0766.561NLT
Manufacturer Pulse
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 284NH SMD / Inductor Power Wirewound 0.284uH/1.14uH 20% 37A/1.5A 0.00038Ohm/0.0015Ohm DCR T/R
Datasheet
PA0766.561NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Series PA0766NL
Packaging Reel package
Number of Coils 2
Test Inductance - Connected In Series 1.14μH
Inductance - Connected In Parallel 284nH
Tolerance ±20%
Current Rating - Parallel 37A
Current Rating - Series 18.5A
Current Saturation - Parallel 37A
Current Saturation - Series 18.5A
DC Resistance (DCR) - Parallel 0.38 mOhm Max
DC Resistance (DCR) - Series 1.5 mOhm Max
Shielding Unshielded
Operating Temperature Range -40°C ~ 130°C
Mounting SMD
Package Nonstandard
Dimension 0.551" L x 0.531" W (14.00mm x 13.50mm)
Height 0.276" (7.00mm)
Win Source Part Number 791333-PA0766.561NLT
Popularity Medium
Supply and Demand Status Limited
Family Name PA0766NL
Introduction Date January 10, 2005
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PA0766.561NLT CAD Model

Description

The Pulse Electronics Corporation 791333-PA0766.561NLT is a nonstandard package inductor.

  • Height: 0.276"
  • Dimension: 0.551" L x 0.531" W
  • Inductance (Parallel): 284nH
  • Inductance (Series): 1.14μH
  • Current Rating (Parallel): 37A
  • Current Rating (Series): 18.5A
  • Current Saturation (Parallel): 37A
  • Current Saturation (Series): 18.5A
  • DC Resistance (DCR) (Parallel): 0.38 mOhm Max
  • DC Resistance (DCR) (Series): 1.5 mOhm Max
  • Tolerance: ±20%
  • Operating Temperature Range: -40°C to 130°C
  • Shielding: Unshielded
  • Mounting Style: SMD
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • ECCN: EAR99
  • Estimated EOL Date: 2027
  • Also Known As: LPT4545SM1R0LM, LPT4545ER1R0LK, LPT4545ER1R0LM, LPT4545ER1R0LP
