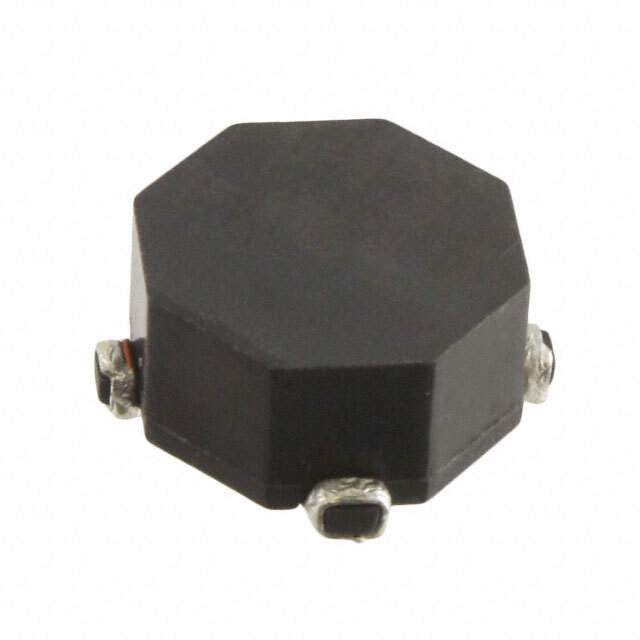

CTX20-4P-R Real Image
Same model may have multiple batches, images only for reference.

CTX20-4P-R

Part No CTX20-4P-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 20.62UH SMD
Datasheet
CTX20-4P-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 82.47μH
Inductance - Connected In Parallel 20.62μH
Tolerance ±20%
Current Rating - Parallel 1.9A
Current Rating - Series 950mA
DC Resistance (DCR) - Parallel 84 mOhm Max
DC Resistance (DCR) - Series 337 mOhm Max
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height 0.250" (6.35mm)
Win Source Part Number 050529-CTX20-4P-R
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CTX20-4P-R CAD Model
