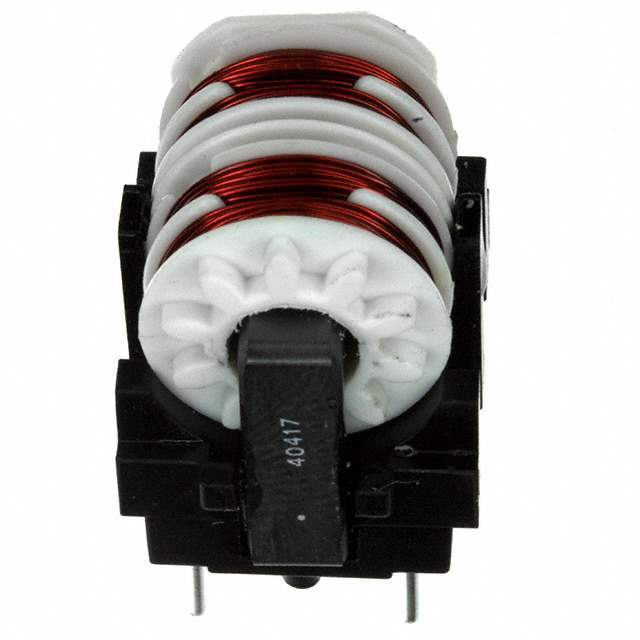

7448640417 Würth Elektronik
Same model may have multiple batches, images only for reference.

7448640417

Part No 7448640417
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 22MH 400MA 2LN TH
Datasheet
7448640417 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206874-7448640417
Manufacturer Würth Elektronik
Category Filters-Common Mode Chokes
Series WE-FC
Package Tray
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 29 mH @ 10 kHz
Current Rating (Max) 520mA
DC Resistance (DCR) (Max) 1.87Ohm
Voltage Rating - AC 250V
Ultra Librarian 3D Model Ultra Librarian 7448640417 CAD Model

Description

29 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 520mA DCR 1.87Ohm
