Same model may have multiple batches, images only for reference.

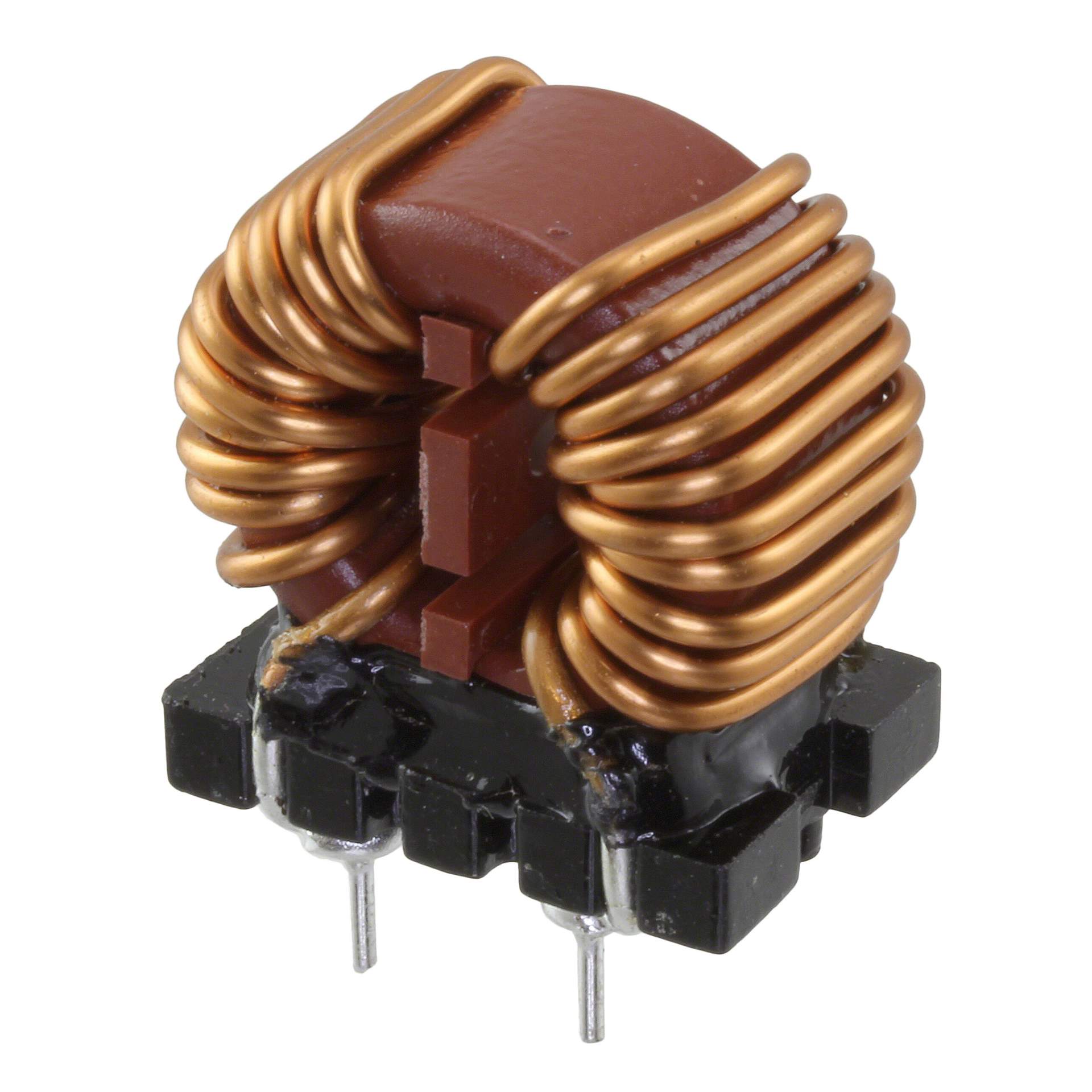

744824101 Real Image
Same model may have multiple batches, images only for reference.

744824101

Part No 744824101
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 1MH 10A 2LN TH / 1 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 10A DCR 7mOhm
Datasheet
744824101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Würth Elektronik
Packaging Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 10 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 7mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Through Hole
Size / Dimension 1.083" L x 0.728" W (27.50mm x 18.50mm)
Height (Max) 1.299" (33.00mm)
Case / Package Vertical, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number Q9956916,732-1449
Standard Package 25
Win Source Part Number 1327556-744824101
Ultra Librarian 3D Model Ultra Librarian 744824101 CAD Model

Description

The Würth Elektronik 1327556-744824101 is a power line filter that can be used in various applications.

  • Application: power line filter
  • Voltage Rating: 250V
  • Current Rating: 10A
  • Filter Type: common mode choke
  • Size/Dimension: 1.083" L x 0.728" W (27.50mm x 18.50mm)
  • Mounting Type: through-hole
  • Package Contains: 25 pieces
  • ROHS3 Compliant: true
  • ECCN: EAR99
  • Operating Temperature: -40°C ~ 125°C
