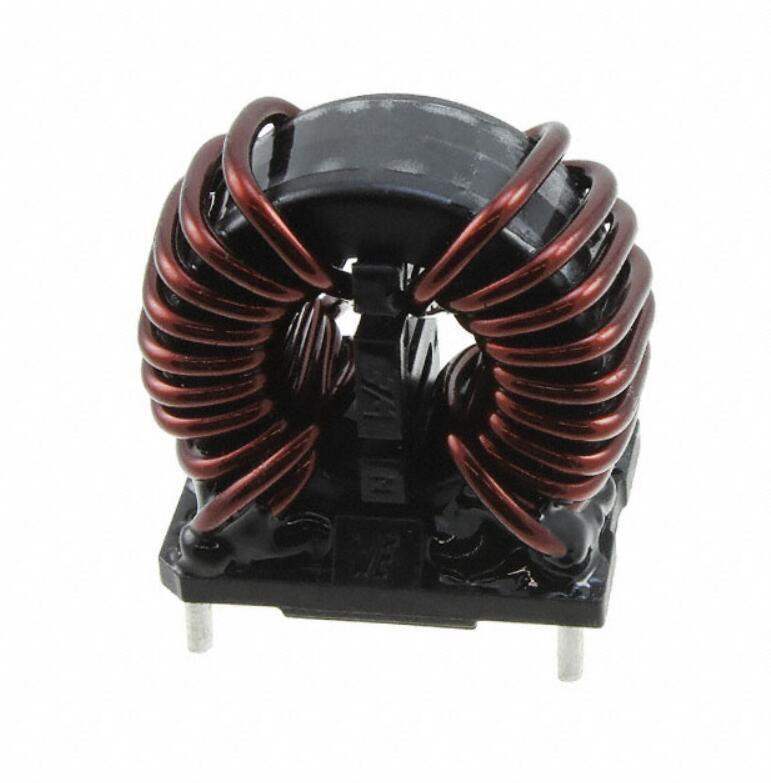

7448052303Würth Elektronik
Same model may have multiple batches, images only for reference.

7448052303

Part No 7448052303
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 3MH 23A 2LN TH
Datasheet
7448052303 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197093-7448052303
Win Source Part Number Cross
Category Filters Common Mode Chokes
Manufacturer Würth Elektronik
Series WE-CMBNC
Package Bulk
Product Status Active
Filter Type Power Line
Inductance @ Frequency 3 mH @ 10 kHz
DC Resistance (DCR) (Max) 3mOhm
Operating Temperature -40°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian 7448052303 CAD Model

Description

The WE-CMBNC series from Würth Elektronik is a range of common mode chokes designed for power line filtering applications.

  • Inductance: 3mH @ 10 kHz
  • DCR (Max): 3mOhm
  • Operating Temperature: -40°C to 125°C
  • Product Status: Active
