Same model may have multiple batches, images only for reference.

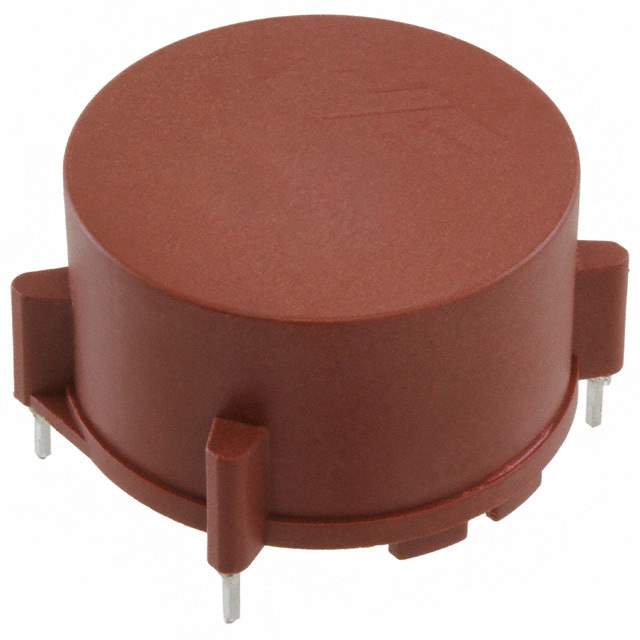

7446923010 Real Image
Same model may have multiple batches, images only for reference.

7446923010

Part No 7446923010
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 10MH 3A 2LN TH / 10 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 3A DCR 155mOhm
Datasheet
7446923010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Würth Elektronik
Series WE-LF
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 10 mH @ 10 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 155mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 1.319" L x 1.319" W (33.50mm x 33.50mm)
Height (Max) 0.787" (20.00mm)
Package / Case Horizontal, 4 PC Pin
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1342132-7446923010
Ultra Librarian 3D Model Ultra Librarian 7446923010 CAD Model

Description

The WE-LF series from Wurth Elektronik is a common mode choke filter designed for power line applications.

  • Voltage Rating: 250V AC
  • Current Rating (Max): 3A
  • Package: Tray
  • Mounting Type: Through Hole
  • Size / Dimension: 1.319" L x 1.319" W (33.50mm x 33.50mm)
  • Height (Max): 0.787" (20.00mm)
  • Package Quantity: 25
  • Category: Filters - Common Mode Chokes
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS: 8548.00.0000
  • Manufacturer: Würth Elektronik
  • DC Resistance (DCR): 155mOhm
