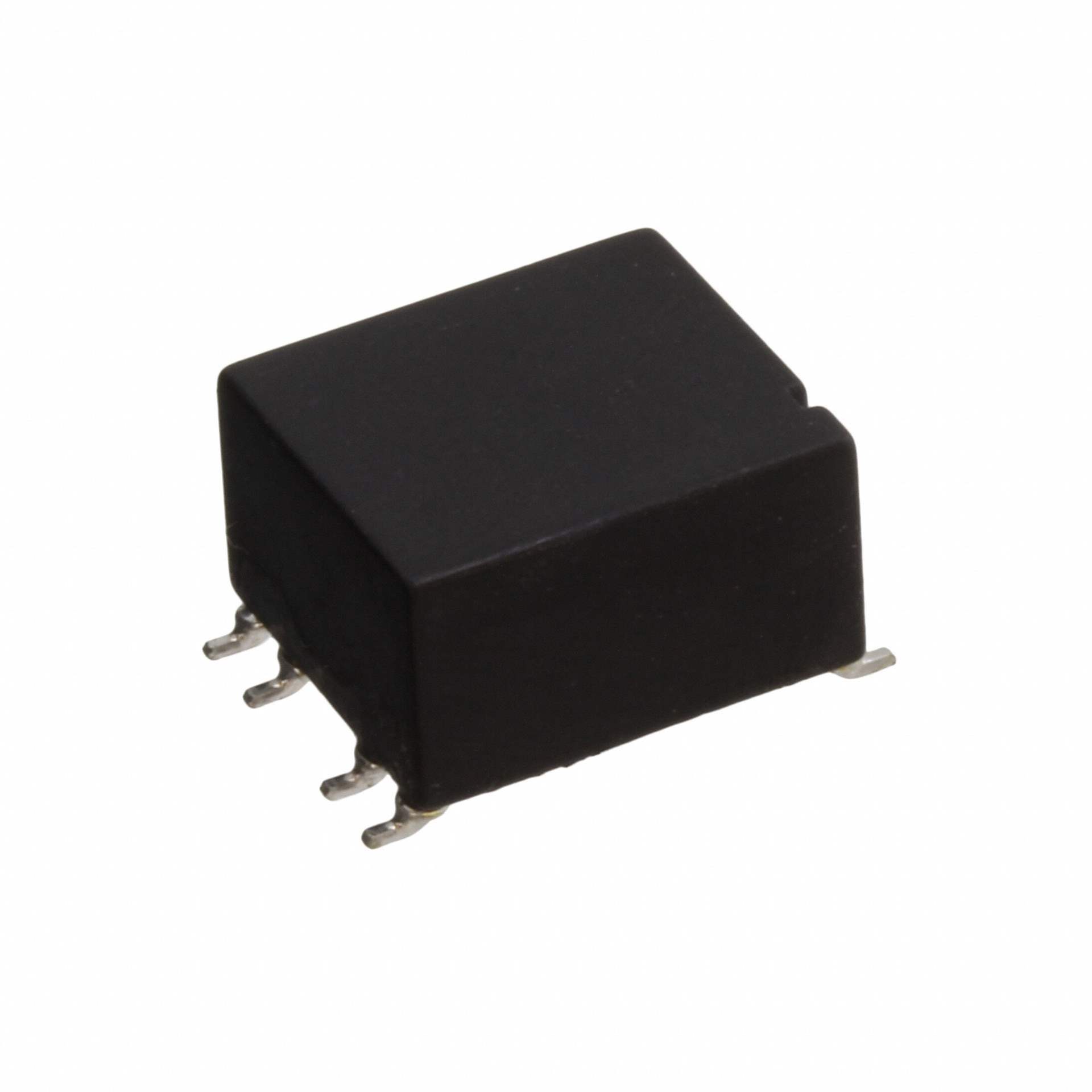

744290121Würth Elektronik
Same model may have multiple batches, images only for reference.

744290121

Part No 744290121
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 120UH 5.5A 2LN SMD
Datasheet
744290121 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207736-744290121
Manufacturer Würth Elektronik
Category Filters- Common Mode Chokes
Series WE-UCF
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Filter Type Power, Signal Line
Number of Lines 2
Inductance @ Frequency 120 µH @ 10 kHz
Mounting Type Surface Mount
Size / Dimension 0.571" L x 0.492" W (14.50mm x 12.50mm)
Ultra Librarian 3D Model Ultra Librarian 744290121 CAD Model

Description

120 µH @ 10 kHz 2 Line Common Mode Choke Surface Mount 5.5A DCR 10.5mOhm
