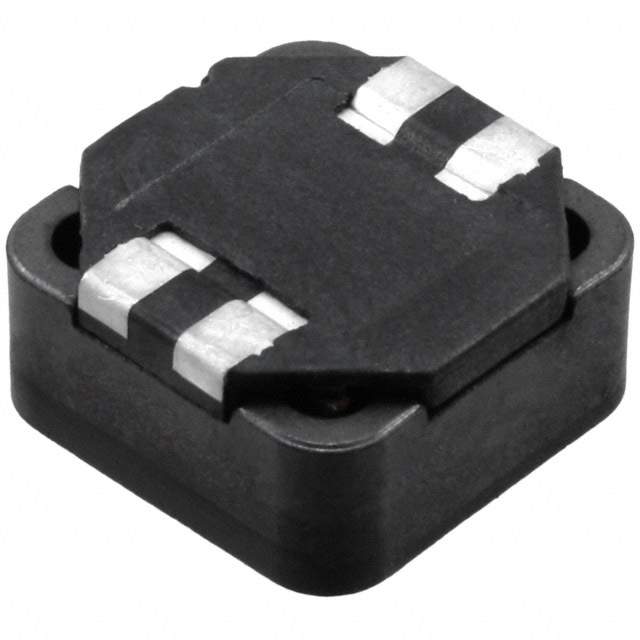

744282100 Real Image
Same model may have multiple batches, images only for reference.

744282100

Part No 744282100
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 10UH 2.25A 2LN 9K OHM SMD
Datasheet
744282100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SCC
Package Tape & Reel
Product Status Active
Filter Type Power, Signal Line
Number of Lines 2
Impedance @ Frequency 9 kOhms @ 20 MHz
Inductance @ Frequency 10 µH @ 100 kHz
Current Rating (Max) 2.25A
DC Resistance (DCR) (Max) 50mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) 0.256" (6.50mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857317-744282100
Ultra Librarian 3D Model Ultra Librarian 744282100 CAD Model

Description

The WE-SCC series is a common mode choke designed for power and signal line filtering in electronic circuits. Wurth Electronics Inc manufactures it.

  • Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Voltage Rating: 80V DC
  • Current Rating: 2.25A
  • Impedance: 9 kOhms @ 20 MHz
  • Inductance: 10 µH @ 100 kHz
  • Package: Surface Mount with horizontal 4 PC Pad configuration
  • Operating Temperature: -40°C to 125°C
  • Package Quantity: 500 pcs
