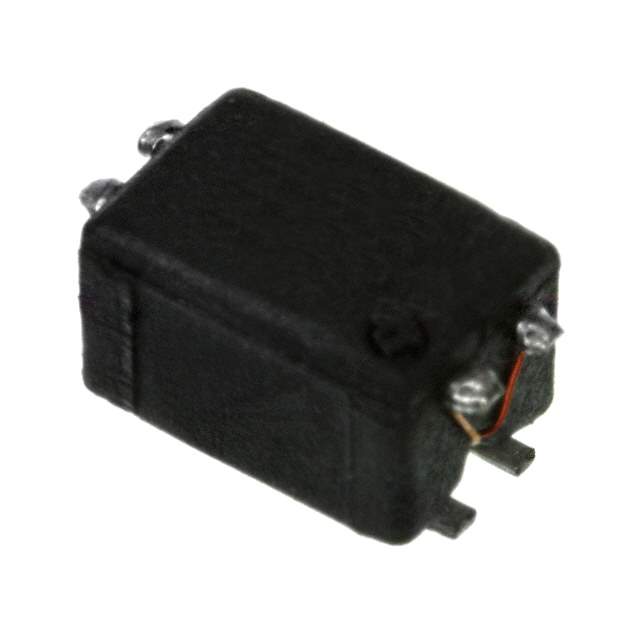

744242110 Real Image
Same model may have multiple batches, images only for reference.

744242110

Part No 744242110
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description COMMON MODE SMD LINE FILTER WE-SLM | CMC 11UH 300MA 2LN 800 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Wurth Electronics Inc.
Packaging Reel
Filter Type Power, Signal Line
Number of Lines 2
Impedance at Frequency 800 Ohms at 135MHz
Inductance at Frequency 11μH at 100kHz
Current Rating (Maximum) 300mA
DC Resistance (DCR) (Maximum) 180mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Parts Dimension 0.236" L x 0.130" W (6.00mm x 3.30mm)
Height (Maximum) 0.138" (3.50mm)
Manufacturer Package Horizontal, 4 Flat Lead
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129924-744242110
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744242110 CAD Model

Description

The Wurth Electronics Inc. 744242110 is a power and signal line filter that has a current rating of 300mA and a DC resistance (DCR) of 180mOhm.

  • Current Rating: 300mA
  • DC Resistance (DCR): 180mOhm
  • Voltage Rating: 80V
  • Operating Temperature: -40°C to 125°C
  • Mounting: Surface Mount
  • Packaging: Reel
  • Popularity: Medium
  • Supply and Demand: Balanced
