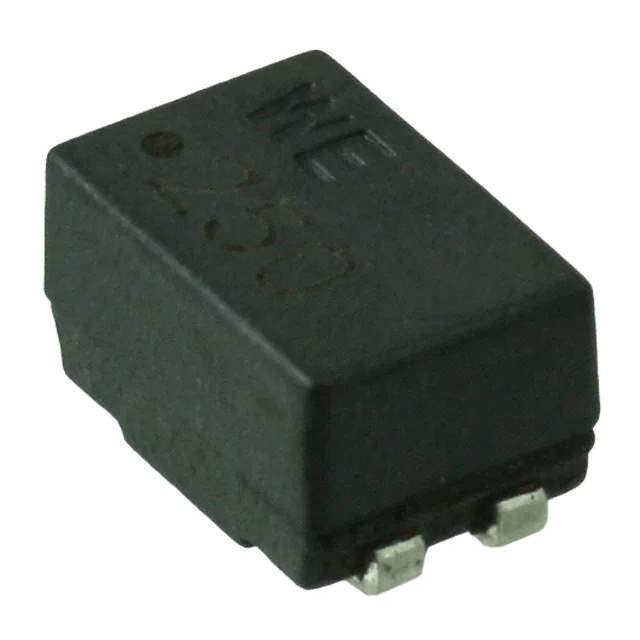

Part No 744228S
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 25UH 1A 2LN 2.8K OHM SMD
Datasheet
744228S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL2
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 2.8 kOhms @ 1 kHz
Inductance @ Frequency 25 µH @ 1 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 120mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) 0.209" (5.30mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857296-744228S
Ultra Librarian 3D Model Ultra Librarian 744228S CAD Model

Description

The WE-SL2 series is a common mode choke designed for signal line filtering in electronic circuits.

  • Size: 0.362" L x 0.236" W (9.20mm x 6.00mm)
  • Voltage Rating: 80V DC
  • Current Rating: 1A
  • Impedance: 2.8 kOhms @ 1 kHz
  • Inductance: 25 µH @ 1 kHz
  • Package: Surface mount
  • Configuration: Horizontal 4 PC Pad
  • Temperature Range: -40°C to 125°C
  • Manufacturer: Wurth Electronics Inc
  • Standard Package: 1,000 pcs
