Same model may have multiple batches, images only for reference.

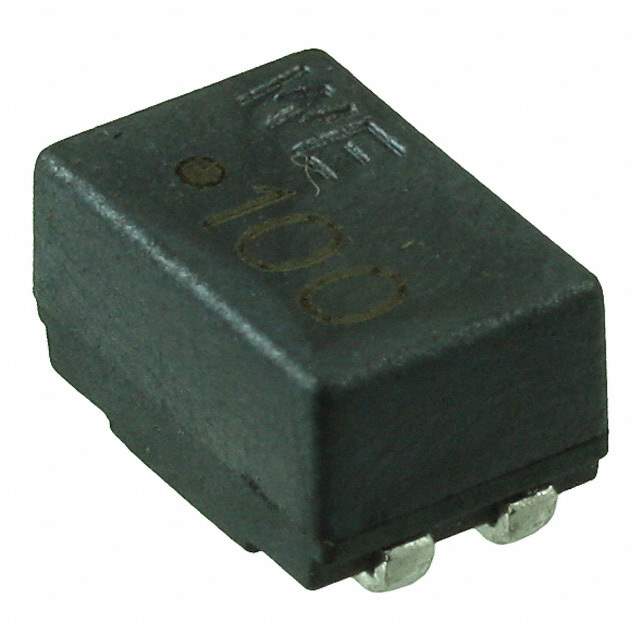

744226S Real Image
Same model may have multiple batches, images only for reference.

744226S

Part No 744226S
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 10UH 1.6A 2LN 920 OHM SMD
Datasheet
744226S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 32 Weeks
Features 10 2 Line Common Mode Choke Surface Mount 1.6A DCR 80mOhm
Manufacturer Wurth Electronics Inc
Series WE-SL2
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 732-1476-6, 732-1476-1, 732-1476-2
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844143-744226S
Ultra Librarian 3D Model Ultra Librarian 744226S CAD Model

Description

The Wurth Electronics Inc WE-SL2 is a 10 2 Line Common Mode Choke Surface Mount 1.6A DCR 80mOhm filter that is designed for general applications.

  • Operating Temperature: -40°C ~ 125°C
  • Packaging: Horizontal, 4 PC pad
  • Supply and Demand: Limited
  • Popularity: Medium
  • Production Lead Time: 32 weeks
  • MSL: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8548.90.0100
  • Other Part Numbers: 732-1476-6, 732-1476-1, 732-1476-2
