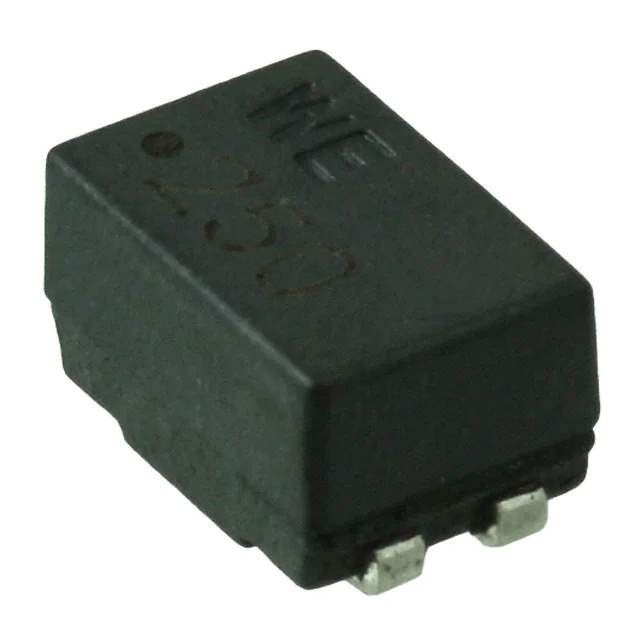

744225S Real Image
Same model may have multiple batches, images only for reference.

744225S

Part No 744225S
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 40UH 900MA 2LN 3.1K OHM SMD / 40 μH @ 1 kHz 2 Line Common Mode Choke Surface Mount 3.1 kOhms @ 50 MHz 900mA DCR 250mOhm
Datasheet
744225S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL2
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 3.1 kOhms @ 50 MHz
Inductance @ Frequency 40 µH @ 1 kHz
Current Rating (Max) 900mA
DC Resistance (DCR) (Max) 250mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) 0.209" (5.30mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857295-744225S
Ultra Librarian 3D Model Ultra Librarian 744225S CAD Model

Description

The 857295-744225S is a signal line common mode choke from Wurth Electronics Inc.

  • Size: 0.362" L x 0.236" W (9.20mm x 6.00mm)
  • Height: 0.209" (5.30mm)
  • Mounting: Surface mount
  • Lines: 2
  • Impedance: 3.1 kOhms @ 50 MHz
  • Inductance: 40 μH @ 1 kHz
  • DC Resistance (DCR): 250mOhm
  • Package: Horizontal, 4 PC pad
  • Temperature Range: -40°C to 125°C
