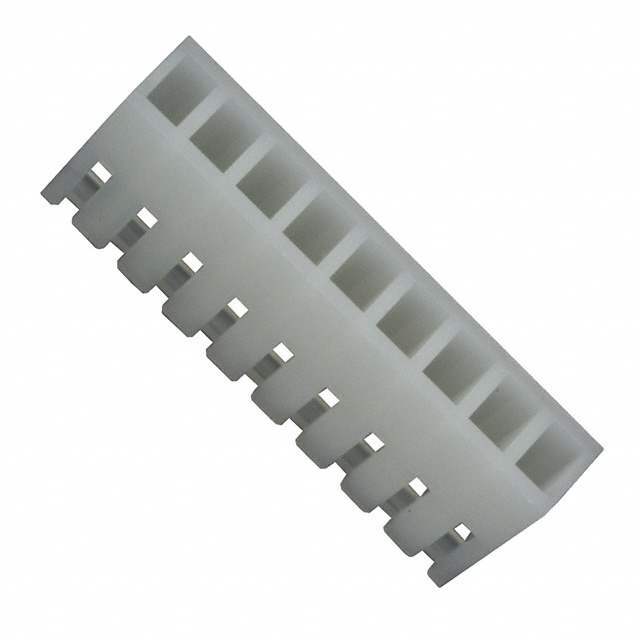

Same model may have multiple batches, images only for reference.

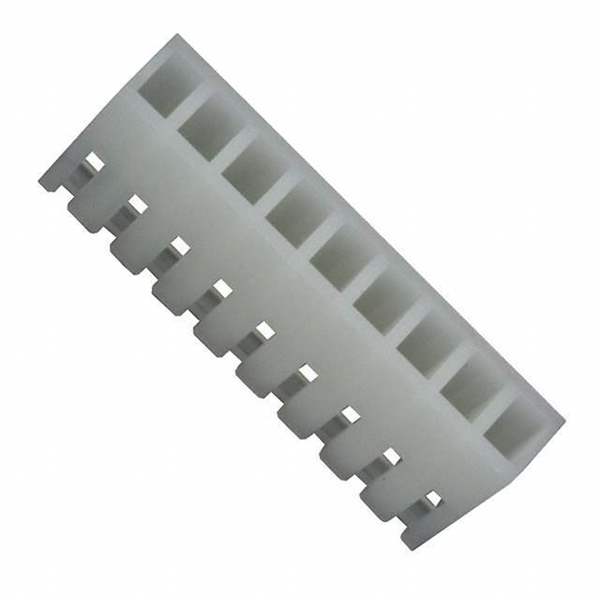

0009507091 Molex
Same model may have multiple batches, images only for reference.

0009507091

Part No 0009507091
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT HSG 9POS 3.96MM
Datasheet
0009507091 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging Bulk
Part Status Active
Connector Type Receptacle
Contact Type Non-Gendered
Number of Positions 9
Pitch 0.156" (3.96mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Natural
Ultra Librarian 3D Model Ultra Librarian 0009507091 CAD Model

Description

9 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)
