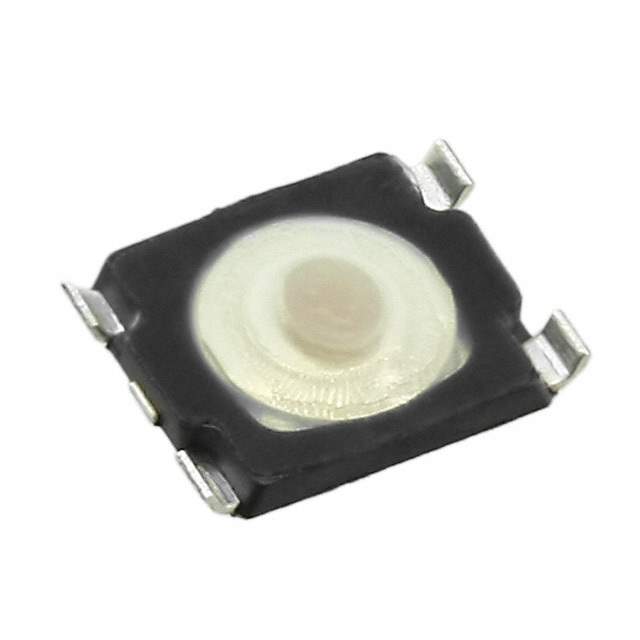

Same model may have multiple batches, images only for reference.

Y34H02122FP

Name: Y34H02122FP
Brand: C&K Components
SKU: 1106026
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	Y34H02122FP
Manufacturer	C&K Components
Catalog	Tactile Switches
Description	Switch Tactile N.O. SPST Round Button J-Lead 0.05A 32VDC 0.5VA 300000Cycle 1.6N SMD T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mounting	SMD (SMT)
Termination	SMD/SMT
Max Current Rating	50 mA
Maximum Operating Temperature	85 °C
Max Voltage Rating (DC)	32 V
Mechanical Life	300 kcycles
Min Operating Temperature	-40 °C
Mount	Surface Mount
Number of Positions	2
Operating Force	1.6 N
RoHS	Compliant
Termination	J-Lead
Throw Configuration	SPST
Win Source Part Number	1106026-Y34H02122FP
Categories	Tactile Switches
Manufacturer	C&K Components
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian Y34H02122FP CAD Model

Description

The C&K Components tactile switch with Win Source Part Number 1106026-Y34H02122FP is a two-position switch with J-Lead termination and SMD/SMT termination.

Manufacturer: C&K Components
Win Source Part Number: 1106026-Y34H02122FP
Positions: Two
Termination: J-Lead, SMD/SMT
Mounting Style: Surface Mount
Operating Force: 1.6 N
Mechanical Life: 300 kcycles
RoHS Compliant: Yes
Operating Temperature: -40 °C to 85 °C
Maximum Voltage Rating: 32 V
Maximum Current Rating: 50 mA
Throw Configuration: SPST
Supply and Demand Status: Shortage
