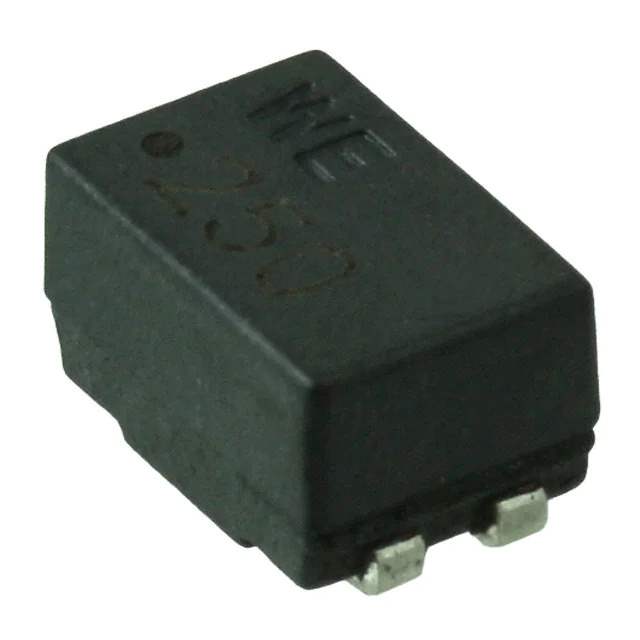

744221 Real Image
Same model may have multiple batches, images only for reference.

744221

Part No 744221
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 2MH 600MA 2LN 9.2K OHM SMD
Datasheet
744221 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL2
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 9.2 kOhms @ 2 MHz
Inductance @ Frequency 2 mH @ 100 kHz
Current Rating (Max) 600mA
DC Resistance (DCR) (Max) 420mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) 0.209" (5.30mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 547221-744221
Ultra Librarian 3D Model Ultra Librarian 744221 CAD Model

Description

The WE-SL2 series from Wurth Electronics Inc. offers high-quality common mode chokes suitable for filtering signal lines.

  • Series: WE-SL2
  • Voltage Rating: 80V DC
  • Maximum Current Rating: 600mA
  • Package: tape & reel
  • Size: 0.362" L x 0.236" W (9.20mm x 6.00mm)
  • Lines: 2
  • Impedance: 9.2 kOhms @ a frequency of 2 MHz
  • Inductance: 2 mH @ a frequency of 100 kHz
  • Mounting: surface mount
  • Package: horizontal, 4 PC pad
  • Temperature Range: -40°C to 125°C
