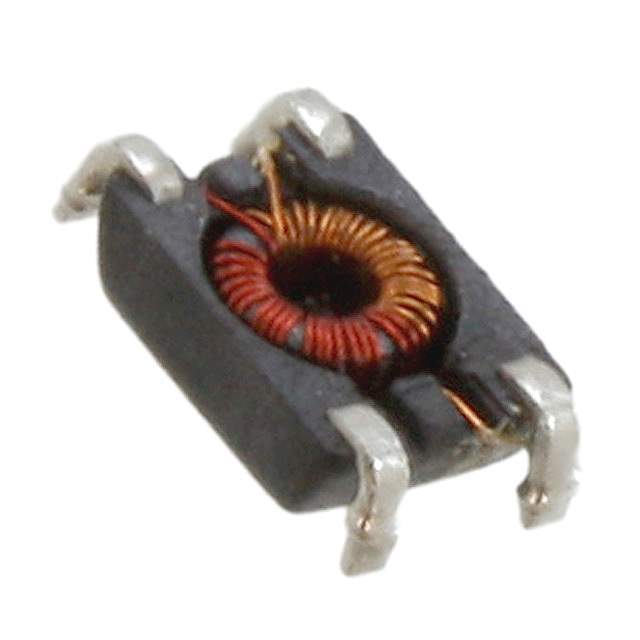

744212510 Real Image
Same model may have multiple batches, images only for reference.

744212510

Part No 744212510
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 51UH 300MA 2LN 300 OHM SMD / 51 μH @ 100 kHz 2 Line Common Mode Choke Surface Mount 300 Ohms @ 300 MHz 300mA DCR 160mOhm
Datasheet
744212510 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL1
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 300 Ohms @ 300 MHz
Inductance @ Frequency 51 µH @ 100 kHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 160mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Size / Dimension 0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Max) 0.071" (1.80mm)
Package / Case Horizontal, 4 J-Lead
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 846212-744212510
Ultra Librarian 3D Model Ultra Librarian 744212510 CAD Model

Description

The WE-SL1 series from Wurth Electronics Inc is a common mode choke designed for signal line filtering.

  • Series: WE-SL1
  • Application: Signal Line Filtering
  • Mounting Type: Surface Mount
  • Size: 0.256" L x 0.142" W (6.50mm x 3.60mm)
  • Voltage Rating: 80V
  • Current Rating: 300mA
  • Impedance: 300 Ohms @ 300 MHz
  • Inductance: 51μH @ 100 kHz
  • Operating Temperature: -40°C to 105°C
  • Standard Package: 1,000 pcs
  • Manufacturer: Wurth Electronics Inc
