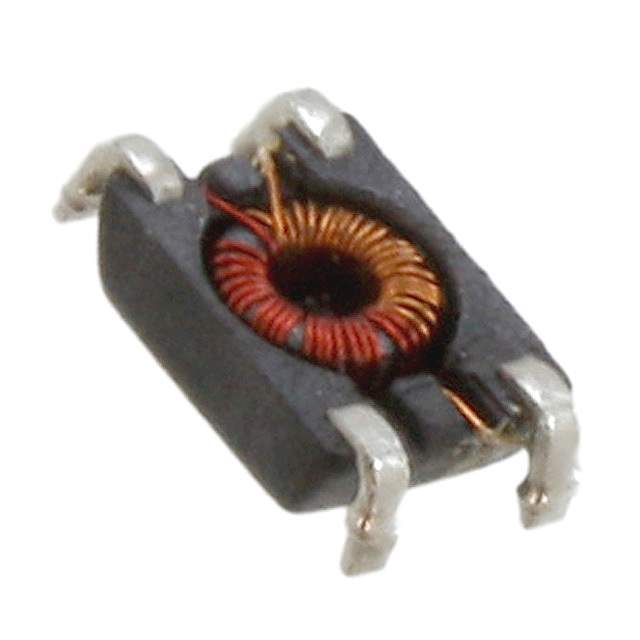

744212181 Real Image
Same model may have multiple batches, images only for reference.

744212181

Part No 744212181
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 180UH 300MA 2LN 1K OHM SMD / 180 μH @ 100 kHz 2 Line Common Mode Choke Surface Mount 1 kOhms @ 40 MHz 300mA DCR 250mOhm
Datasheet
744212181 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL1
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 1 kOhms @ 40 MHz
Inductance @ Frequency 180 µH @ 100 kHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 250mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Size / Dimension 0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Max) 0.071" (1.80mm)
Package / Case Horizontal, 4 J-Lead
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857289-744212181
Ultra Librarian 3D Model Ultra Librarian 744212181 CAD Model

Description

The WE-SL1 series is a common mode choke designed for signal line filtering in electronic circuits.

  • Size: 0.256" L x 0.142" W (6.50mm x 3.60mm)
  • Voltage Rating: 80V DC
  • Current Rating: 300mA
  • Impedance: 1 kOhms @ 40 MHz
  • Inductance: 180 µH @ 100 kHz
  • Package: Surface mount
  • Configuration: Horizontal 4 J-Lead
  • Temperature Range: -40°C to 105°C
  • Manufacturer: Wurth Electronics Inc
  • Standard Package: 1,000 pcs
