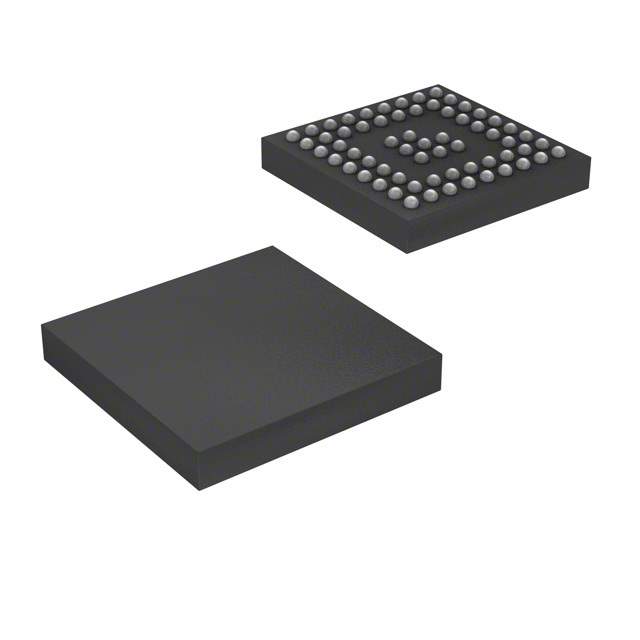

The Texas Instruments SN65DSI85ZXHR is a state-of-the-art dual-channel MIPI DSI to FlatLink™ LVDS bridge that offers a comprehensive solution for enabling a seamless interface between processors and displays. This advanced bridge chip is designed to meet the needs of high-performance display applications, particularly in the automotive, industrial, and consumer markets where high-resolution and reliable video transmission are critical.

Key Features

• Dual-Channel DSI Interface: The SN65DSI85ZXHR supports dual-channel DSI inputs, which allows for high-speed serial communication between the host processor and the bridge.
• LVDS Output: The device converts the DSI signal into LVDS (Low Voltage Differential Signaling), providing a high-speed output that is compatible with a wide range of LCD and OLED display panels.
• High Resolution Support: It is capable of handling resolutions up to 1080p at 60 Hz, making it ideal for high-definition display applications.
• Low Power Consumption: Designed with power efficiency in mind, the SN65DSI85ZXHR minimizes power consumption, which is crucial for battery-powered devices.

Applications

The versatility of the SN65DSI85ZXHR makes it suitable for a variety of applications, including:

• Automotive infotainment and navigation systems
• Industrial displays and monitors
• Portable electronics such as tablets and laptops
• Medical equipment with display requirements
• Digital signage and advertising displays

Product Specifications

The SN65DSI85ZXHR is designed to offer a reliable and efficient solution for bridging the gap between high-speed serial interfaces and display technologies. Its robust feature set and flexibility make it a go-to choice for designers looking to enhance the visual performance and connectivity of their products.
