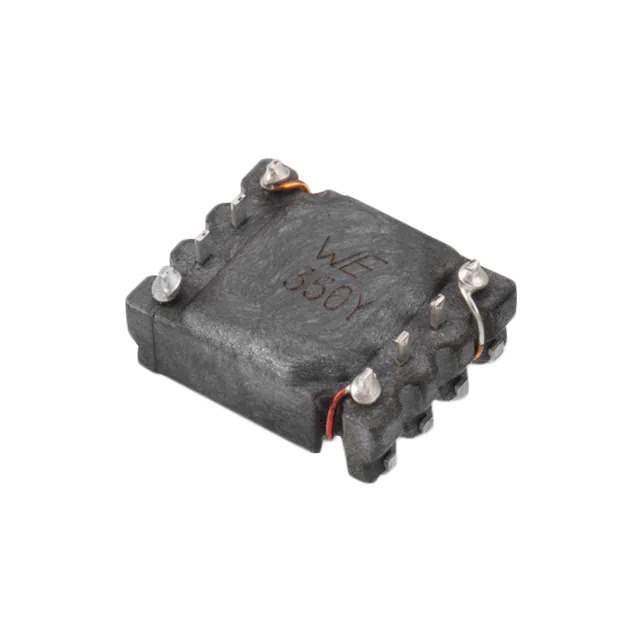

744207 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 35 µH @ 100 kHz
Current Rating (Max) 2.7A
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Height (Max) 0.238" (6.05mm)
Package / Case Horizontal, 8 Gull Wing
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 547217-744207
Ultra Librarian 3D Model Ultra Librarian 744207 CAD Model

Description

The WE-SL series is a range of common mode chokes designed for signal line filtering applications.

  • Size: 0.238" (6.05mm)
  • Inductance: 35 µH @ 100 kHz
  • Voltage Rating: 80V DC
  • Current Rating: 2.7A
  • Height: 0.238" (6.05mm)
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -40°C to 125°C
  • Package: Tape & reel
  • Standard Package: 600 pcs
  • Manufacturer: Wurth Electronics Inc
  • Applications: Signal line filtering
