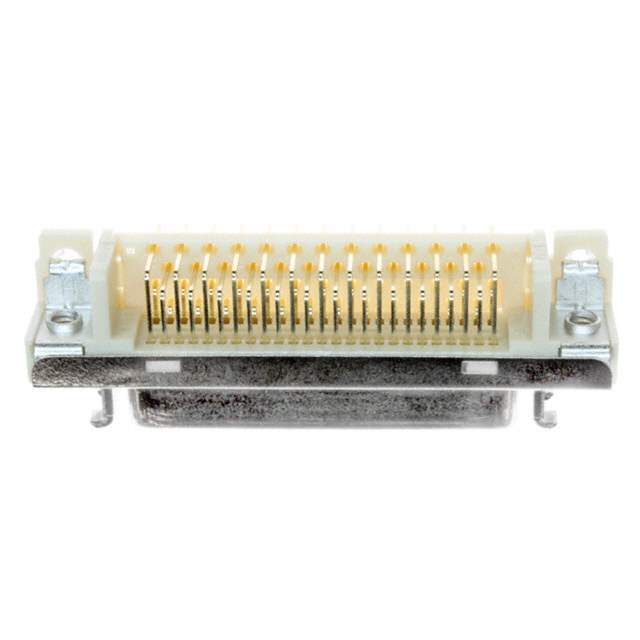

10250-55H3PC Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Series 102, Mini D Ribbon (MDR)
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 50
Number of Rows 2
Mounting Panel Mount, Through Hole, Right Angle
Termination Solder
Flange Feature Insert, Threaded (4-40); Latchblocks
Features Board Lock, Shielded
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Win Source Part Number 760128-10250-55H3PC
Popularity Medium
Supply and Demand Status Limited
Family Name 102
Introduction Date November 08, 2004
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 10250-55H3PC CAD Model

Description

The 760128-10250-55H3PC is a shielded receptacle connector from the 102, Mini D Ribbon (MDR) series by 3M.

  • Positions: 50
  • Features: Board Lock
  • Mounting Style: Right Angle, Panel Mount, Through Hole
  • Supply and Demand Status: Limited
  • Manufacturer: 3M
  • EOL Date: 2026 (Estimated)
