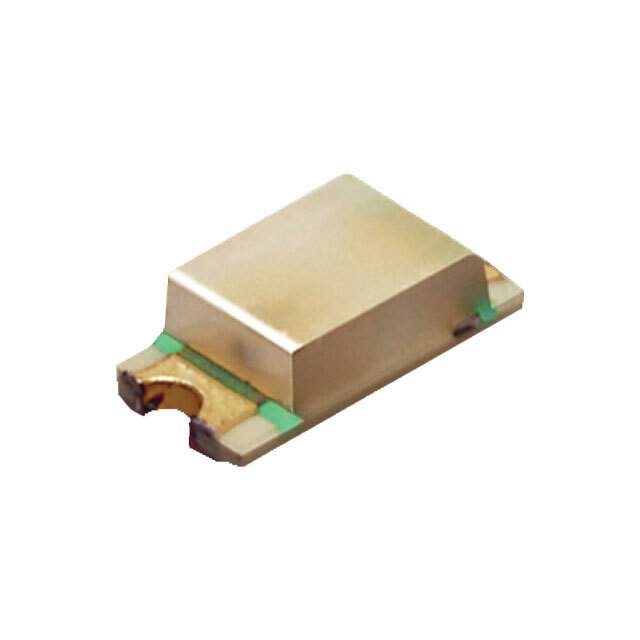

SML-D15DWT86C Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Rohm Semiconductor
Series Automotive, AEC-Q101, SML-D15
Package Tape & Reel
Color Orange
Configuration Standard
Lens Color White
Millicandela Rating 224mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 605nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 1608 (0603)
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.65mm
Base Product Number SML-D15
Other Names SML-D15DWT86CDKR,SML-D15DWT86CCT,SML-D15DWT86CTR
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241677-SML-D15DWT86C
Ultra Librarian 3D Model Ultra Librarian SML-D15DWT86C CAD Model

Description

The SML-D15DWT86C is an orange LED indication that is designed to be used in surface mount applications.

  • Millicandela Rating: 224mcd
  • Voltage-Forward Rating: 2V
  • Package Size: 0603 (1608 Metric)
  • Lens Style: Rectangular with a flat top
  • Lens Size: 1.20mm x 0.80mm
  • Height: 0.65mm
  • Packaging: Tape and reel
  • Standard Package: 3,000
