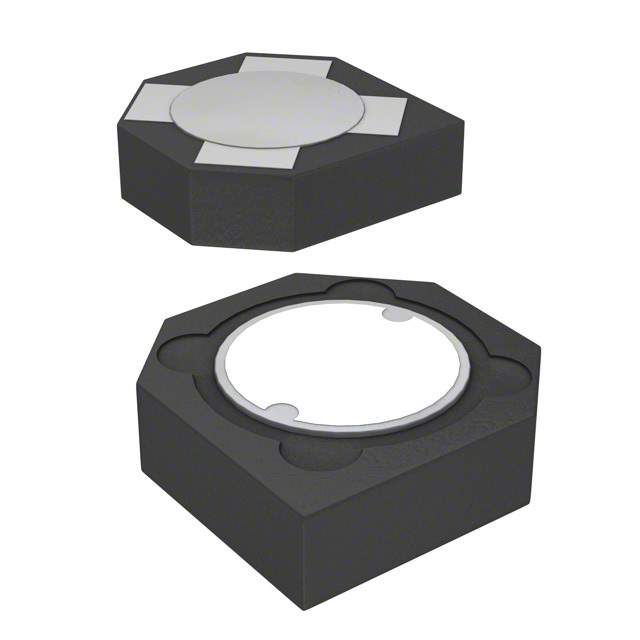

744030006 Real Image
Same model may have multiple batches, images only for reference.

744030006

Part No 744030006
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-INDUCTOR WE-TPC | FIXED IND 6.8UH 400MA 500 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 6.8μH
Tolerance ±30%
Current Rating (Amps) 400mA
Current - Saturation 430mA
Shielding Shielded
DC Resistance (DCR) 500mOhm Max
Frequency - Self Resonant 85MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.138" L x 0.130" W (3.50mm x 3.30mm)
Height - Seated (Maximum) 0.041" (1.05mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129854-744030006
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744030006 CAD Model

Description

The Wurth Electronics Inc. 551057 is a shielded wirewound inductor with an inductance of 6.8μH and a tolerance of ±30%.

  • Material: Ferrite
  • DC Resistance: 500mOhm Max
  • Current Rating: 400mA
  • Saturation Current: 430mA
  • Self-Resonant Frequency: 85MHz
  • Temperature Range: -40°C to 125°C
  • Mounting: SMD
  • Packaging: Nonstandard
  • Height: 0.041" (1.05mm)
  • Dimension: 0.138" L x 0.130" W (3.50mm x 3.30mm)
  • Applications: Inductors, coils, and chokes
