Same model may have multiple batches, images only for reference.

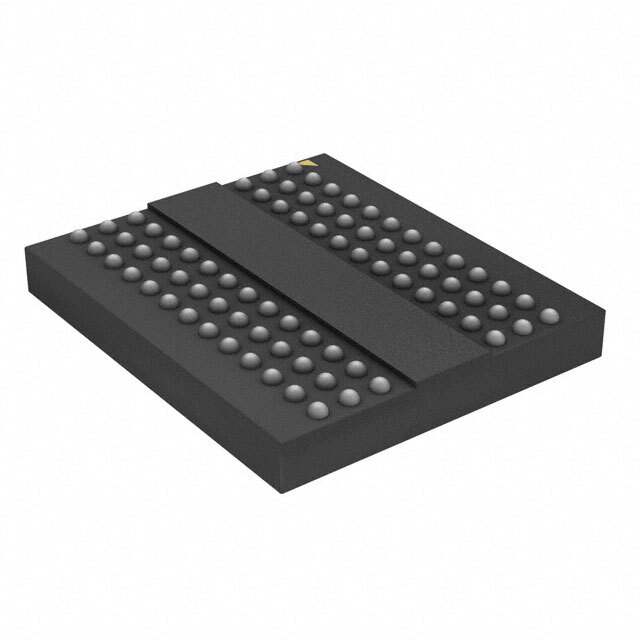

W632GG8NB-12 Real Image
Same model may have multiple batches, images only for reference.

W632GG8NB-12

Part No W632GG8NB-12
Manufacturer Winbond Electronics
Catalog Memory
Description IC DRAM 2GBIT PARALLEL 78VFBGA
Datasheet
W632GG8NB-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Winbond Electronics
Package Tray
Product Status Active
Programmable Not Verified
Memory Type Volatile
Memory Format DRAM
Technology SDRAM - DDR3
Memory Size 2Gbit
Memory Organization 256M x 8
Memory Interface Parallel
Clock Frequency 800 MHz
Write Cycle Time - Word, Page 15ns
Access Time 20 ns
Voltage - Supply 1.425V ~ 1.575V
Temperature Range - Operating 0°C ~ 95°C (TC)
Mounting Type Surface Mount
Package / Case 78-VFBGA
Supplier Device Package 78-VFBGA (8x10.5)
Base Product Number W632GG8
Standard Package 242 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0036
Win Source Part Number 941701-W632GG8NB-12
Ultra Librarian 3D Model Ultra Librarian W632GG8NB-12 CAD Model

Description

The Winbond Electronics 941701-W632GG8NB-12 is a 2Gbit DDR3 SDRAM memory module.

  • Clock Frequency: 800 MHz
  • Access Time: 20 ns
  • Memory Organization: 256M x 8
  • Memory Type: Volatile
  • Voltage Supply: 1.425V to 1.575V
  • Mounting Type: Surface Mount
  • Package Type: 78-VFBGA (8x10.5)
  • Temperature Range: 0°C to 95°C
  • Category: Integrated circuits (ICs)
  • Product Line: Memory
  • Package Quantity: 242 pcs
  • Manufacturer: Winbond Electronics
  • Status: Active
  • Memory Format: DRAM
  • Memory Interface: Parallel
  • Write Cycle Time: 15ns
