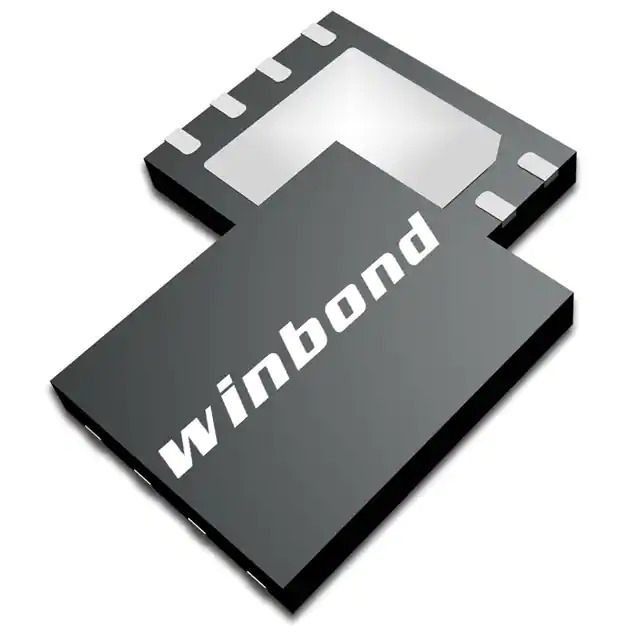

W25N512GWEIR Winbond Electronics
Same model may have multiple batches, images only for reference.

W25N512GWEIR

Part No W25N512GWEIR
Manufacturer Winbond Electronics
Catalog Memory
Description IC FLASH 512MBIT SPI/QUAD 8WSON / FLASH - NAND (SLC) Memory IC 512Mbit SPI - Quad I/O 104 MHz 7 ns 8-WSON (8x6)
Datasheet
W25N512GWEIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Winbond Electronics
Series SpiFlash®
Package Tray
Product Status Active
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NAND (SLC)
Memory Size 512Mbit
Memory Organization 64M x 8
Memory Interface SPI - Quad I/O
Clock Frequency 104 MHz
Write Cycle Time - Word, Page 700µs
Access Time 7 ns
Voltage - Supply 1.7V ~ 1.95V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-WDFN Exposed Pad
Supplier Device Package 8-WSON (8x6)
Base Product Number W25N512
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 1356995-W25N512GWEIR
Ultra Librarian 3D Model Ultra Librarian W25N512GWEIR CAD Model

Description

The W25N512GWEIR is a SPIFlash memory IC from Winbond Electronics.

  • Memory Type: NAND FLASH
  • Capacity: 512Mbit
  • Organization: 64M x 8
  • Interface: SPI Quad I/O
  • Voltage Supply: 1.7V to 1.95V
  • Temperature Range: -40°C to 85°C
  • Mounting Type: Surface Mount
  • Package: Exposed Pad
  • Packaging: Tray
  • Clock Frequency: 104 MHz
