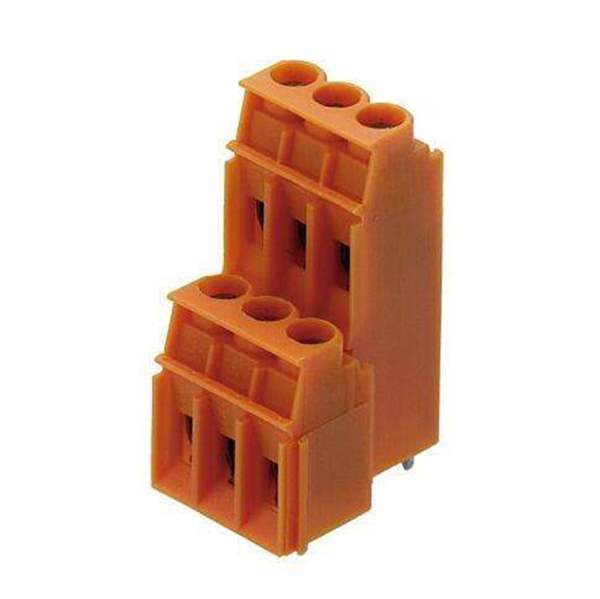

1596530000 Weidmüller
Same model may have multiple batches, images only for reference.

1596530000

Part No 1596530000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description TERM BLK 8P SIDE ENT 5.08MM PCB
Datasheet
1596530000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Wire to Board
Series Omnimate LP
Package Bulk
Product Status Obsolete
Number of Levels 2
Positions Per Level 8
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Mounting Type Through Hole
Color Orange
Win Source Part Number WS1206080-1596530000
Ultra Librarian 3D Model Ultra Librarian 1596530000 CAD Model

Description

Single- and multi-row PCB terminal with proven clamping yoke connection at 5.08 mm pitch, conductor outlet direction 90°. Suitable for conductor cross-sections up to 6.0 mm
