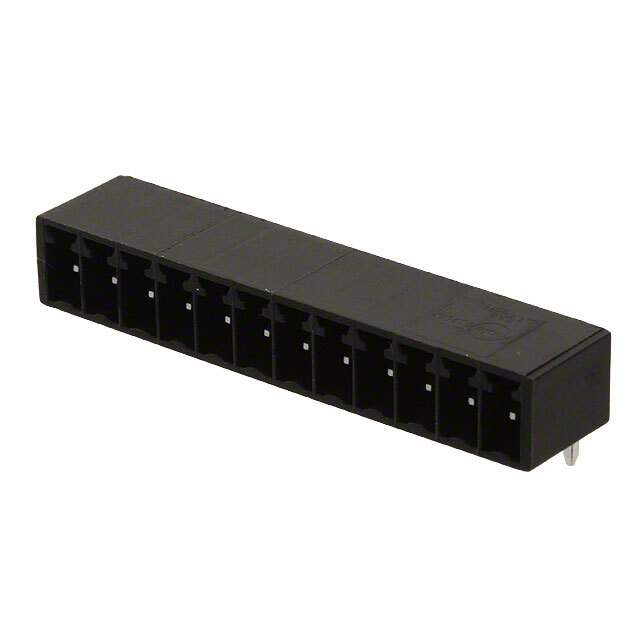

Same model may have multiple batches, images only for reference.

39502-1012

Name: 39502-1012
Brand: Molex, LLC
SKU: 1146478
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	39502-1012
Manufacturer	Molex, LLC
Catalog	Terminal Blocks
Description	Conn Shrouded Header (4 Sides) HDR 12 POS 3.5mm Solder RA Side Entry Thru-Hole Eurostyle™
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Contact Material	Brass
Contact Plating	Tin
Contact Resistance	8 mΩ
Country of Origin	US
Current Rating	8 A
ELV	Compliant
Flammability Rating	UL94 V-0
Halogen Free	Low Halogen
Height	6.9 mm
Housing Color	Black
Housing Material	Polyamide
Insulation Resistance	500 MΩ
Lead Free	Lead Free
Length	43.4 mm
Max Operating Temperature	105 °C
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	12
Number of Contacts	12
Number of Positions	12
Number of Rows	1
Orientation	Horizontal
Pitch	3.5 mm
REACH SVHC	No SVHC
RoHS	Compliant
Schedule B	8536694040
Termination	Solder
Voltage Rating	300 V
Width	9.2 mm
Win Source Part Number	1146478-39502-1012
Categories	Terminal Blocks
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 39502-1012 CAD Model

Description

This Molex Terminal Block has a horizontal orientation with a polyamide housing material.

Orientation: Horizontal
Housing Material: Polyamide
Positions: 12
Termination: Solder
Voltage Rating: 300 V
Current Rating: 8 A
Color: Black
Width: 9.2 mm
RoHS Compliant: Yes
Lead-Free: Yes
Mounting: Through-Hole
Flammability Rating: UL94 V-0
Length: 43.4 mm
Height: 6.9 mm
Contact Resistance: 8 mΩ
Insulation Resistance: 500 MΩ
