Same model may have multiple batches, images only for reference.

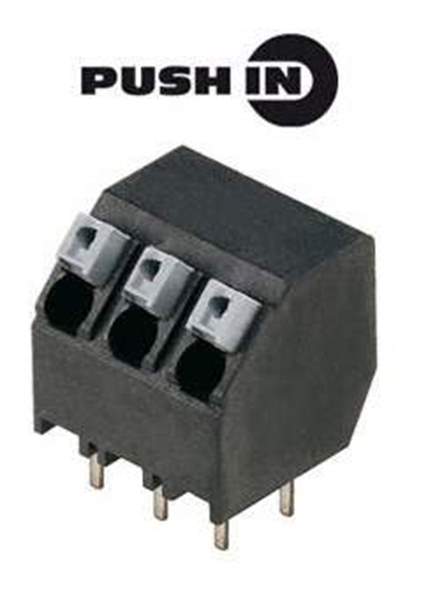

1884600000 Real Image
Same model may have multiple batches, images only for reference.

1884600000

Part No 1884600000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description Weidmüller OMNIMATE Signal - series LSF LSF-SMT 5.00/09/135 1.5SN BK TU - 1884600000
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, cURus
Color Black
Contact Plating Tin
Current 12 A
Current Rating 10 A
Flammability Rating UL94 V-0
Hole Diameter 1.1 mm
Housing Color Black
Housing Material Polymer
Lead Free Lead Free
Max Operating Temperature 240 °C
Min Operating Temperature -50 °C
Mount Through Hole
Number of Circuits 9
Number of Contacts 9
Number of Levels 1
Number of Poles 9
Number of Positions 9
Number of Positions Per Level 9
Number of Rows 1
Pitch 5.0038 mm
Radiation Hardening No
RoHS Compliant
Stripping Length 8 mm
Termination Screwless
Voltage 300 V
Voltage Rating 300 V
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Win Source Part Number 1141875-1884600000
Categories Terminal Blocks
Manufacturer Weidmuller
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1884600000 CAD Model

Description

The 1884600000 is a 9-position, screwless terminal block designed for use in various electronic devices from Weidmuller.

  • Voltage Rating: 300 V
  • Current Rating: 10 A
  • Housing Material: polymer
  • Color: black
  • Approvals: CSA and cURus
  • RoHS Compliant: true
  • Maximum Operating Temperature: 240 °C
  • Minimum Operating Temperature: -50 °C
  • Flammability Rating: UL94 V-0
  • Lead-Free: true
  • Popularity: medium
  • Supply and Demand Status: limited
