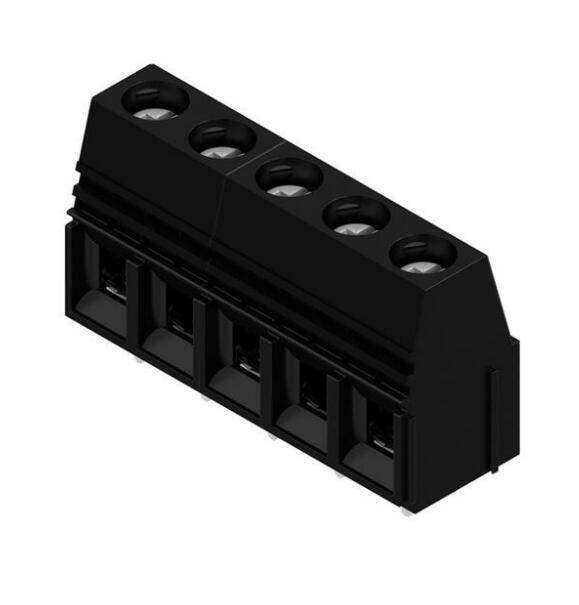

Part No 1226230000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description TERM BLK 5P SIDE ENT 10.16MM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Wire to Board
Series Omnimate Power LU
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 5
Pitch 0.400" (10.16mm)
Mating Orientation Horizontal with Board
Mounting Type Through Hole
Wire Termination Screw - Clamping Yoke, Tension Sleeve
Win Source Part Number WS1205823-1226230000
Ultra Librarian 3D Model Ultra Librarian 1226230000 CAD Model

Description

This PCB terminal provides connections for 76 A and 16 mm² conductor cross-section with proven clamping yoke connection at 10.16 mm pitch, conductor outlet direction in 90° design.
