Same model may have multiple batches, images only for reference.

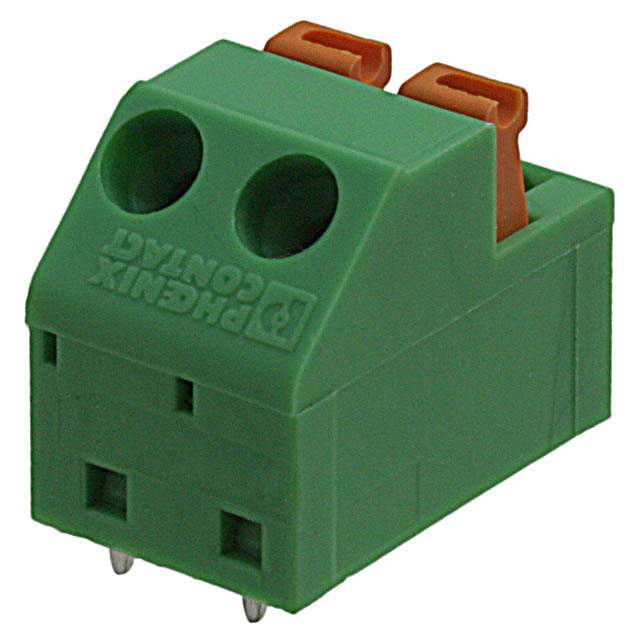

1790283 Real Image
Same model may have multiple batches, images only for reference.

1790283

Part No 1790283
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description Wire-To-Board Terminal Block, 2, 250 V, 12 A, 22 Awg, 18 Awg, 1.5 Mm Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black, Green
Contact Material Copper
Contact Plating Tin
Current 3.6 A
Current Rating 12 A
Flammability Rating UL94 V-2
Housing Color Green
Housing Material Nylon
Lead Free Lead Free
Length 10 mm
Mount Through Hole
Number of Contacts 2
Number of Levels 1
Number of Positions 2
Number of Positions Per Level 2
Pitch 5.08 mm
RoHS Compliant
Termination Screwless
Voltage 300 V
Voltage Rating 320 V
Voltage Rating (AC) 250 V
Weight 2.457989 g
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 18 AWG
Win Source Part Number 1158443-1790283
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1790283 CAD Model

Description

The Phoenix Contact 1158443-1790283 is a terminal block with 2 positions, 1 level, and a pitch of 5.08mm.

  • Positions: 2
  • Levels: 1
  • Pitch: 5.08mm
  • Color: Black and Green
  • Termination Style: Screwless
  • Contact Material: Copper
  • Voltage Rating: 320V
  • Current Rating: 12A
  • Number of Contacts: 2
  • Length: 10mm
  • Housing Material: Nylon
  • Voltage: 300V
  • Contact Plating: Tin
  • Housing Color: Green
  • Weight: 2.457989g
  • Current: 3.6A
  • Category: Terminal Blocks
  • Supply and Demand: Limited
  • Lead-Free: Yes
  • Mount: Through-Hole
  • RoHS Compliant: Yes
  • Voltage Rating (AC): 250V
  • Flammability Rating: UL94 V-2
  • Wire Gauge: 22 AWG to 18 AWG
  • Positions Per Level: 2
