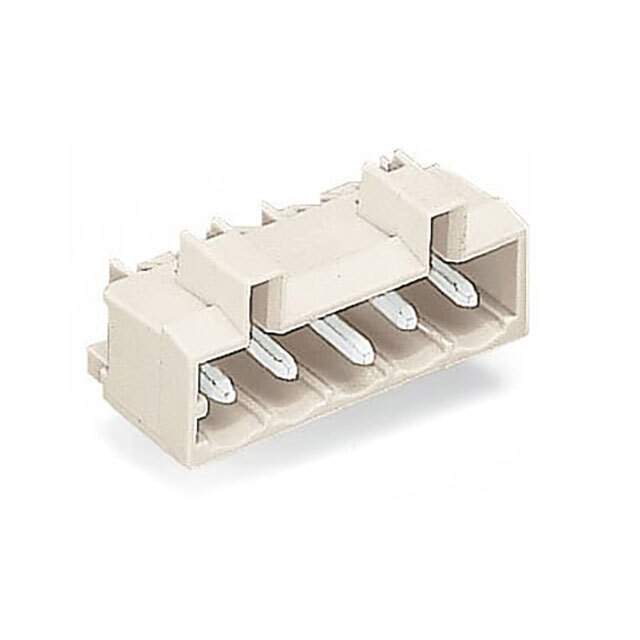

721-432/001-000 Real Image
Same model may have multiple batches, images only for reference.

721-432/001-000

Part No 721-432/001-000
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description THT MALE HEADER; 1.0 X 1.0 MM SO / 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMIDI
Package Box
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.197" (5.00mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 10 A
Voltage - UL 600 V
Color Gray
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Electrolytic Copper
Housing Material Polyamide (PA66) , Nylon 6/6
Contact Tail Length 0.150" (3.81mm)
Insulation Height 0.449" (11.40mm)
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1339970-721-432/001-000
Ultra Librarian 3D Model Ultra Librarian 721-432/001-000 CAD Model

Description

The MCSMIDI series male pin shrouded header connector is an ideal choice for terminal block applications.

  • Positions per Level: 2
  • Levels: 1
  • Pitch: 0.197 inches
  • Header Orientation: 90° right angle
  • Termination: Solder
  • Voltage Rating: 600V
  • Current Rating: 10A (UL) and 12A (IEC)
  • Material: Electrolytic copper
  • Material Flammability: UL94 V-0
  • Temperature Range: -60°C to 100°C
  • Package: Box
  • Standard Package Quantity: 1
