Same model may have multiple batches, images only for reference.

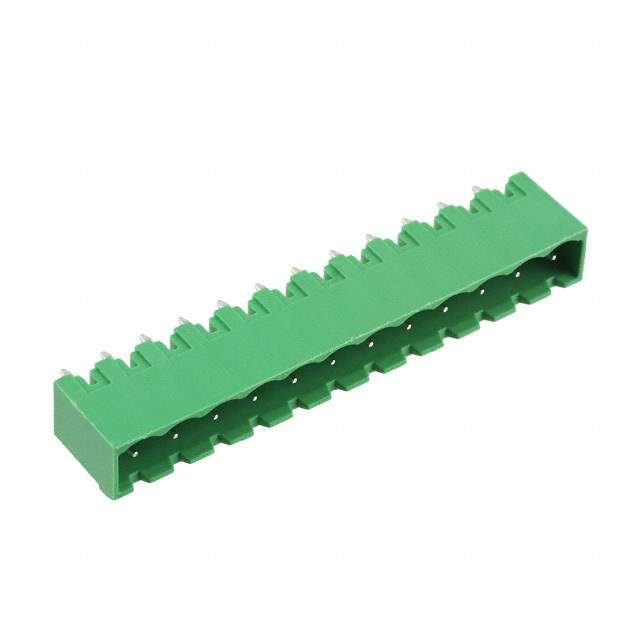

OSTOQ125450 Real Image
Same model may have multiple batches, images only for reference.

OSTOQ125450

Part No OSTOQ125450
Manufacturer On Shore Technology Inc.
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 12POS VERT 5.08MM / 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Solder
Datasheet
OSTOQ125450 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr On Shore Technology Inc.
Series OSTOQ
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Positions Per Level 12
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation Vertical
Mounting Type Solder
Voltage - UL 300 V
Temperature Range - Operating -30°C ~ 105°C
Contact Mating Finish Tin
Contact Material Brass
Housing Material Thermoplastic
Contact Tail Length 0.157" (4.00mm)
Insulation Height 0.472" (12.00mm)
Base Product Number OSTOQ12
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340985-OSTOQ125450
Ultra Librarian 3D Model Ultra Librarian OSTOQ125450 CAD Model

Description

The OSTOQ125450 is a 12-position male pin shrouded header designed for use in terminal block applications.

  • Number of Positions: 12
  • Gender: Male
  • Type: Pin Header
  • Application: Terminal Block
  • Pitch: 0.200 inches (5.08mm)
  • Mounting Angle: Vertical
  • Pin Material: Brass
  • Plating: Tin
  • Housing Material: Thermoplastic
  • Flammability Rating: UL94 V-0
  • Wire Size: 16 to 28 AWG
  • Voltage Rating: 300V
  • Packaging: Bulk
  • Mounting: Soldering
  • Operating Temperature: -30°C to 105°C
