Same model may have multiple batches, images only for reference.

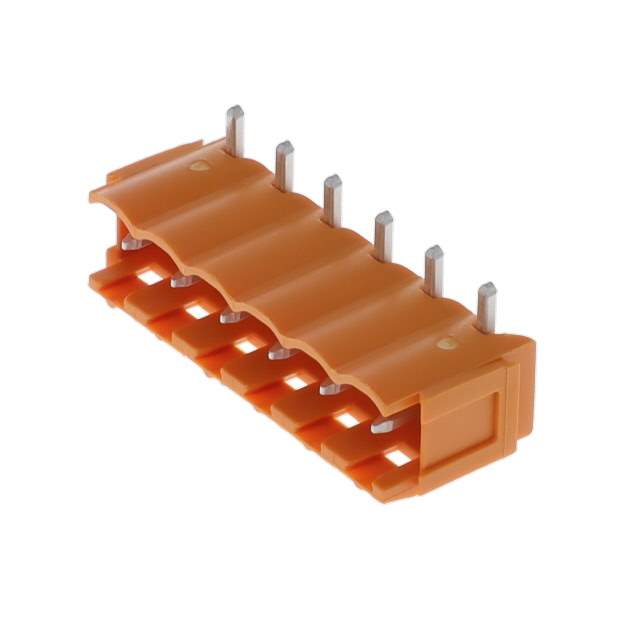

1580900000 Real Image
Same model may have multiple batches, images only for reference.

1580900000

Part No 1580900000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 6POS 90DEG 5MM / 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
Datasheet
1580900000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Weidmüller
Series Omnimate SL
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Positions Per Level 6
Number of Levels 1
Pitch 0.197" (5.00mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - IEC 18A
Voltage - IEC 400 V
Current - UL 15 A
Voltage - UL 300 V
Color Orange
Temperature Range - Operating -50°C ~ 100°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Ingress Protection IP20
Contact Material Copper Alloy
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.126" (3.20mm)
Insulation Height 0.330" (8.38mm)
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350923-1580900000
Ultra Librarian 3D Model Ultra Librarian 1580900000 CAD Model

Description

The 1350923-1580900000 from Weidmüller is a header, male pin, shrouded (4 side) terminal block from the Omnimate SL series.

  • Type: Header, Male Pin, Shrouded (4 Side)
  • Number of Positions per Level: 6 Positions
  • Number of Levels: 1 Level
  • Current: 18A (IEC), 15A (UL)
  • Voltage Rating: 400V (IEC), 300V (UL)
  • Operating Temperature Range: -50°C to 100°C
  • Series: Omnimate SL
  • Manufacturer: Weidmüller
  • Product: Terminal Blocks
