Same model may have multiple batches, images only for reference.

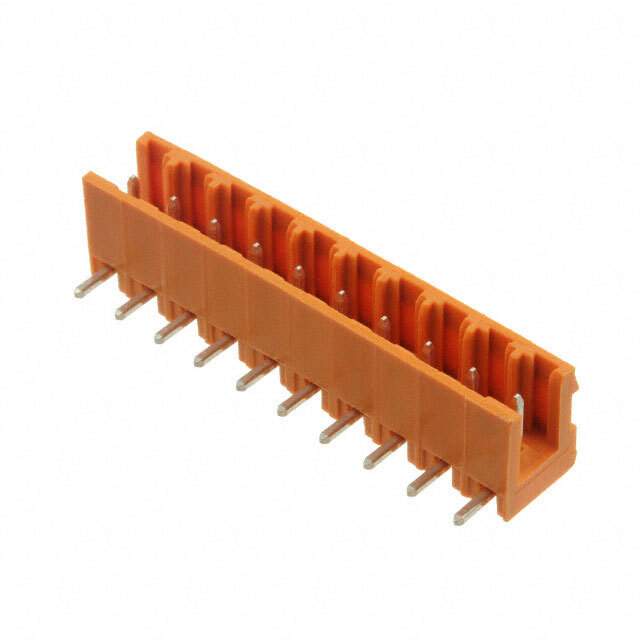

1347660000 Real Image
Same model may have multiple batches, images only for reference.

1347660000

Part No 1347660000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 10POS 5.08MM / 10 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Datasheet
1347660000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Weidmüller
Series Unimate SLA
Package Bulk
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 10
Positions Per Level 10
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - IEC 10A
Voltage - IEC 250 V
Current - UL 10 A
Voltage - UL 300 V
Color Orange
Temperature Range - Operating -20°C ~ 120°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Copper Alloy
Housing Material Polybutylene Terephthalate (PBT) , Glass Filled
Contact Tail Length 0.177" (4.50mm)
Insulation Height 0.370" (9.40mm)
Standard Package 50
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350841-1347660000
Ultra Librarian 3D Model Ultra Librarian 1347660000 CAD Model

Description

The Unimate SLA header from Weidmüller is a male pin shrouded header with a right-angle orientation.

  • Positions Per Level: 10
  • Number of Levels: 1
  • Pitch: 0.200" (5.08mm)
  • Current Rating: 10A
  • Voltage Rating (IEC): 250V
  • Voltage Rating (UL): 300V
  • Housing Material: Polybutylene Terephthalate (PBT) and Glass-Filled
  • Contact Material: Copper Alloy with Tin Plating
  • Temperature Range: -20°C to 120°C
  • Mounting Type: Through-Hole
