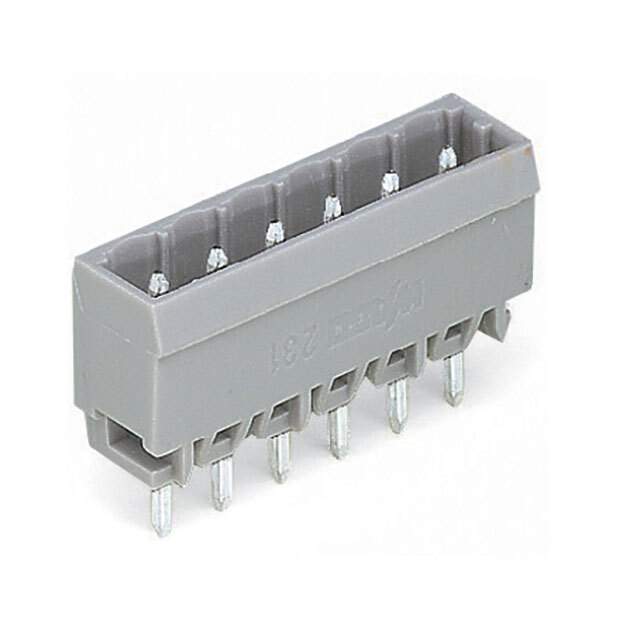

Same model may have multiple batches, images only for reference.

231-134/001-000

Name: 231-134/001-000
Brand: WAGO Corporation
SKU: 1352143
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	231-134/001-000
Manufacturer	WAGO Corporation
Catalog	Headers, Plugs and Sockets
Description	THT MALE HEADER; 1.0 X 1.0 MM SO / 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	WAGO Corporation
Series	MCSMIDI Classic
Package	Box
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.197" (5.00mm)
Header Orientation	Vertical
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	12A
Voltage - IEC	320 V
Current - UL	10 A
Voltage - UL	600 V
Color	Gray
Temperature Range - Operating	-60°C ~ 100°C
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Contact Material	Electrolytic Copper
Housing Material	Polyamide (PA66) , Nylon 6/6
Contact Tail Length	0.197" (5.00mm)
Insulation Height	0.472" (12.00mm)
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1352143-231-134/001-000
Ultra Librarian 3D Model	Ultra Librarian 231-134/001-000 CAD Model

Alternative Products

Description

The 1352143-231-134/001-000 is a part of the MCSMIDI Classic series of electronic components.

Series: MCSMIDI Classic
Connector Type: Header, Male Pins, Shrouded (4 Side)
Number of Positions per Level: 4
Number of Levels: 4
Pitch: 0.197" (5.00mm)
Header Orientation: Vertical
Termination Style: Solder
IEC Current: 12A
IEC Voltage: 320 V
UL Current: 10 A
UL Voltage: 600 V
Contact Mating Finish: Tin
Packaging: Box
Contact Material: Electrolytic Copper
Material Flammability Rating: UL94 V-0
Standard Package: 1
MSL Level: 1 (Unlimited)
HTSUS: 8536.90.4000
Manufacturer: WAGO Corporation
