1605210000

Get a Quote

Part No	1605210000
Manufacturer	Weidmuller
Catalog	Headers, Plugs and Sockets

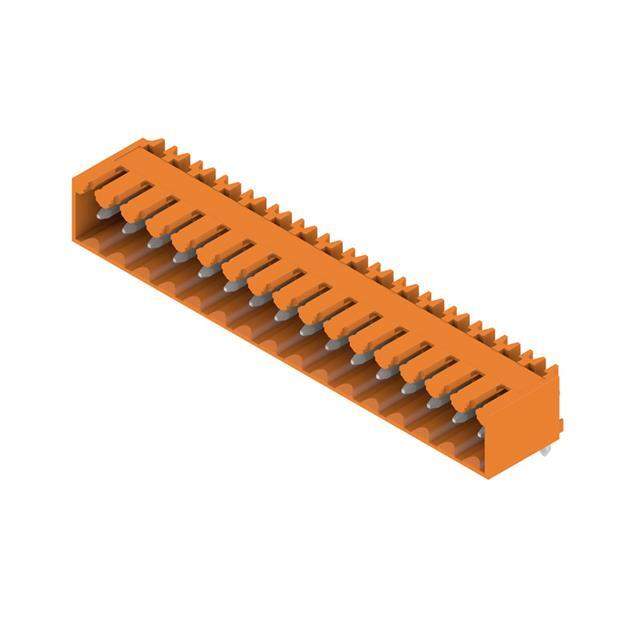

Description	TERM BLOCK HDR 16POS 90DEG 3.5MM / 16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Weidmüller
Series	Omnimate SL
Package	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	16
Positions Per Level	16
Number of Levels	1
Pitch	0.138" (3.50mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	17A
Voltage - IEC	320 V
Current - UL	10 A
Voltage - UL	300 V
Color	Orange
Temperature Range - Operating	-50°C ~ 100°C
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Ingress Protection	IP10
Contact Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
Contact Tail Length	0.126" (3.20mm)
Insulation Height	0.298" (7.57mm)
Standard Package	50
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1340723-1605210000
Ultra Librarian 3D Model	Ultra Librarian 1605210000 CAD Model

Description

The Omnimate SL series terminal block is a shrouded header with 16 positions per level and 16 positions in total.

Header Type: Male Pin
Orientation: Right Angle, 90 Degrees
Termination: Solder
Current Rating (IEC): 17A
Current Rating (UL): 10A
Voltage Rating (IEC): 320V
Voltage Rating (UL): 300V
Contact Material: Copper Alloy
Contact Mating Finish: Tin
Ingress Protection: IP10
Housing Material: Polybutylene Terephthalate (PBT)
Flammability Rating: UL94 V-0
Mounting Type: Through Hole
Insulation Height: 0.298 inches (7.57mm)
Contact Tail Length: 0.126 inches (3.20mm)
Packaging: Bulk
Standard Package: 50
