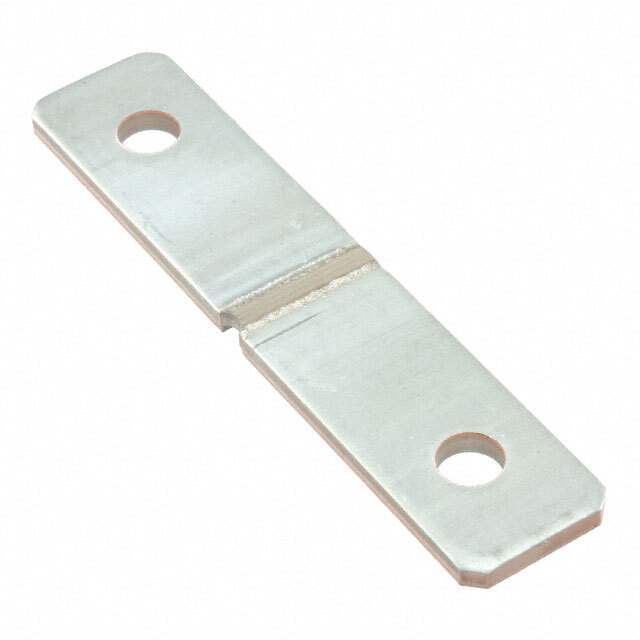

WSBS8518L1000JK14 Vishay Dale
Same model may have multiple batches, images only for reference.

WSBS8518L1000JK14

Part No WSBS8518L1000JK14
Manufacturer Vishay
Catalog Specialized Resistors
Description RESISTOR SHUNT 100 UOHM 5% 36W
Datasheet
WSBS8518L1000JK14 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308219-WSBS8518L1000JK14
Manufacturer Vishay Dale
Category Resistors>Specialized Resistors
Packaging  Bulk
Part Status Active
Type Shunt, Battery
Applications Automotive AEC-Q200
Composition Metal Element
Resistance (Ohms) 100 µOhms
Tolerance (+ or -) ±5%
Mounting Type Shunt Fixture, 60mm Pitch
Ultra Librarian 3D Model Ultra Librarian WSBS8518L1000JK14 CAD Model

Description

FEATURES
• High power to resistor size ratio
• Sn plating assists with PCB mounting and corrosion protection • Proprietary processing technique produces extremely low resistance values
• All welded construction
• Very low inductance (< 5 nH)
• Low thermal EMF (as low as < 1 μV/°C)
• AEC-Q200 qualified
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
