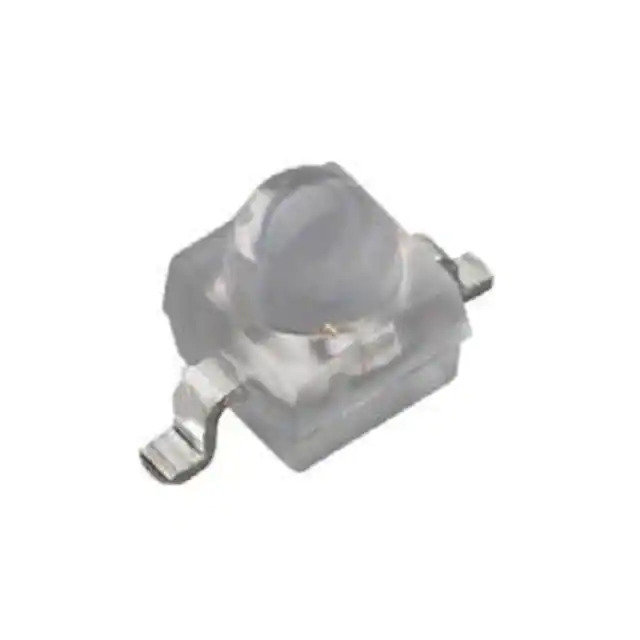

VSMB294008G Vishay
Same model may have multiple batches, images only for reference.

VSMB294008G

Part No VSMB294008G
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM 100MA SMD
Datasheet
VSMB294008G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Emitters - Infrared, UV, Visible
Mfr Vishay Semiconductor Opto Division
Series VSMB294008
Package Tape & Reel
Product Status Active
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 30mW/sr @ 100mA
Wavelength 940nm
Voltage - Forward (Vf) (Typ) 1.35V
Viewing Angle 14°
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 2-SMD, Z-Bend
Base Product Number VSMB294008
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371892-VSMB294008G
Ultra Librarian 3D Model Ultra Librarian VSMB294008G CAD Model

Description

The VSMB294008G is an infrared (IR) LED emitter from Vishay Semiconductor Opto Division.

  • Series: VSMB294008
  • Operating Temperature: -40°C to 85°C
  • Forward Voltage: 1.35V
  • Viewing Angle: 14°
  • Forward Current: 100mA
  • Wavelength: 940nm
  • Mounting Type: Surface Mount
  • Package: 2-SMD, Z-Bend
  • REACH: Unaffected
  • ECCN: EAR99
