Same model may have multiple batches, images only for reference.

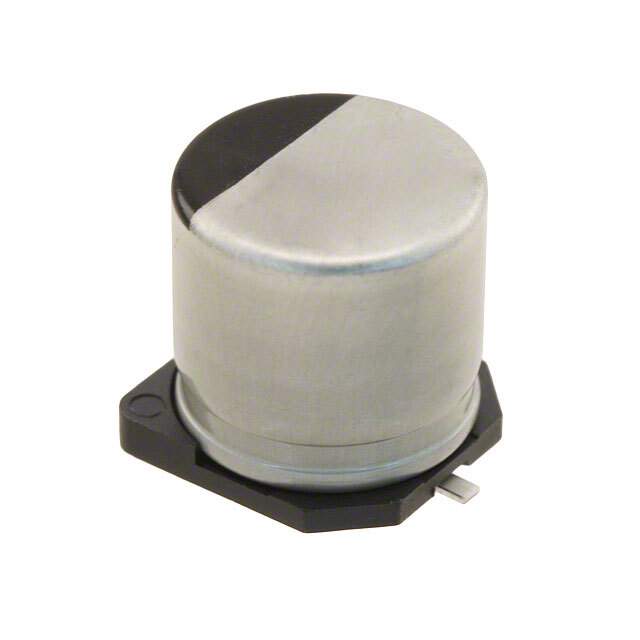

EEH-ZA1E330R Real Image
Same model may have multiple batches, images only for reference.

EEH-ZA1E330R

Part No EEH-ZA1E330R
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY HYB 33UF 25V SMD / 33 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 80mOhm 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series ZA
Package Tape & Reel
Type Hybrid
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 80mOhm
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 90 mA @ 100 Hz
Ripple Current @ High Frequency 900 mA @ 100 kHz
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEH-ZA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1341455-EEH-ZA1E330R
Ultra Librarian 3D Model Ultra Librarian EEH-ZA1E330R CAD Model

Description

The Panasonic Electronic Components EEH-ZA series hybrid aluminum-polymer capacitor is designed for automotive applications.

  • Series: EEH-ZA
  • Manufacturer: Panasonic Electronic Components
  • Application: Automotive
  • Capacitance: 33 µF
  • Rated Voltage: 25 V
  • Tolerance: ±20%
  • ESR: 80mOhm
  • Polarization: Polarized
  • Package: Radial, Can-SMD
  • Mounting Type: Surface Mount
  • Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Size/Dimension: 0.197" Dia (5.00mm) x 0.240" (6.10mm)
  • Operating Temperature: -55°C ~ 105°C
  • Lifetime: 10000 Hrs @ 105°C
