Same model may have multiple batches, images only for reference.

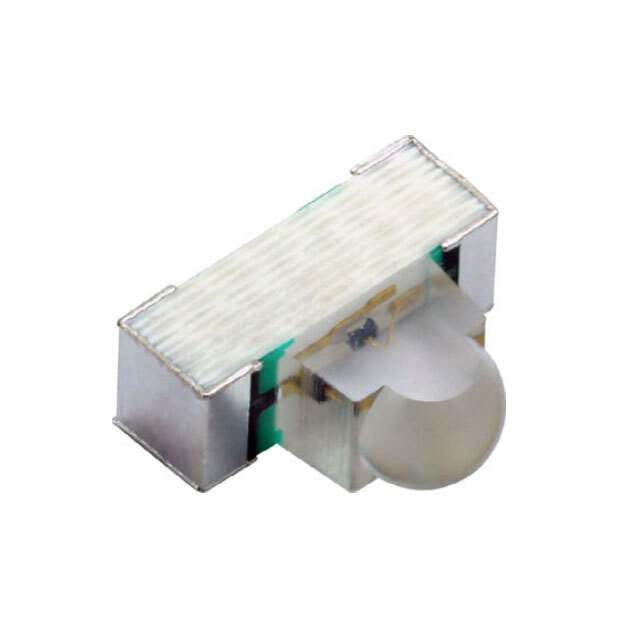

VSMB14940 Real Image
Same model may have multiple batches, images only for reference.

VSMB14940

Part No VSMB14940
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description Infrared Emitter 940nm 35mW/sr Circular Right Angle 2-Pin SMD T/R / EMITTER IR 940NM 70MA SMD
Datasheet
VSMB14940 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Infrared (IR)
Continuous forward current- Max 70mA
Radiant Intensity (Ie) Min @ If 35mW/sr @ 70mA
Wavelength 940nm
Forward Voltage 1.33V
Viewing Angle 18°
Orientation Side View
Temperature Range - Operating -40°C to 85°C (TA)
Mounting Surface Mount, Right Angle
Dimension 2-SMD, No Lead, Exposed Pad
Win Source Part Number 1117711-VSMB14940
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name VSMB14940
Introduction Date October 09, 2013
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VSMB14940 CAD Model

Description

The Vishay VSMB14940 is an optoelectronic electronic component with a side view orientation and surface mount, right-angle mounting.

  • Package: 2-SMD, no lead, exposed pad
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Forward Voltage: 1.33V
  • Viewing Angle: 18°
  • Wavelength: 940nm
  • Radiant Intensity (Ie) Min @ If: 35mW/sr @ 70mA
  • Family: VSMB14940
  • Introduction Date: October 09, 2013
