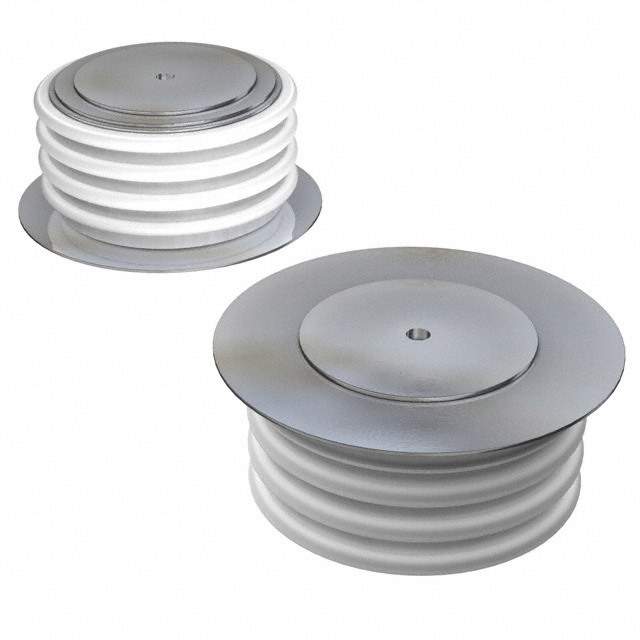

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 2000V
Current - Average Rectified (Io) 1600A
Voltage - Forward (Vf) (Maximum) @ If 1.64V @ 3000A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50mA @ 2000V
Mounting Chassis Mount
Package DO-200AB, B-PUK
Manufacturer Package DO-200AB, B-PUK
Win Source Part Number 794024-VS-SD1500C20L
Popularity Medium
Supply and Demand Status Limited
Family Name VS-SD1500C20L
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VS-SD1500C20L CAD Model

Description

The VS-SD1500C20L from Vishay is a chassis mount standard diode designed for use in a wide range of electronic applications.

  • Maximum Forward Voltage Drop: 1.64V
  • Current Rating: 1600A
  • Package: DO-200AB, B-PUK
  • Operating Temperature Range: -65°C to 175°C
  • Category: Discrete Semiconductor Products
