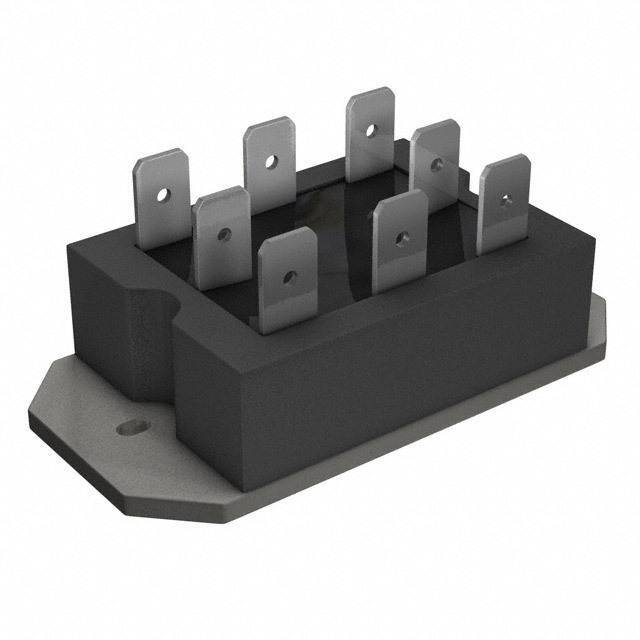

VS-P401W Vishay
Same model may have multiple batches, images only for reference.

VS-P401W

Part No VS-P401W
Manufacturer Vishay
Catalog SCRs - Single - Modules
Description SCR HY-BRIDGE 400V 40A PACE-PAK / SCR Module Diode 400V 375A 6-Pin Case D-19
Datasheet
VS-P401W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Structure Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes 2 SCRs, 2 Diodes
Voltage - Off State 400V
Current - On State (It (RMS)) (Maximum) 40A (DC)
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 60mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 385A, 400A
Current - Hold (Ih) (Maximum) 130mA
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Chassis Mount
Package 8-PACE-PAK
Win Source Part Number 791139-VS-P401W
Popularity Medium
Supply and Demand Status Limited
Family Name VS-P401
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VS-P401W CAD Model

Description

The VS-P401W is a single-phase bridge rectifier from Vishay Semiconductor Diodes Division.

  • Maximum Repetitive Peak Reverse Voltage: 400V
  • Maximum Forward Current: 40A
  • Forward Voltage Drop: 1.3V @ 20A
  • Surge Current: 400A
  • Package: 8-PACE-PAK
  • RoHS Compliant: Yes
  • Popularity: Medium
  • Supply/Demand: Limited
