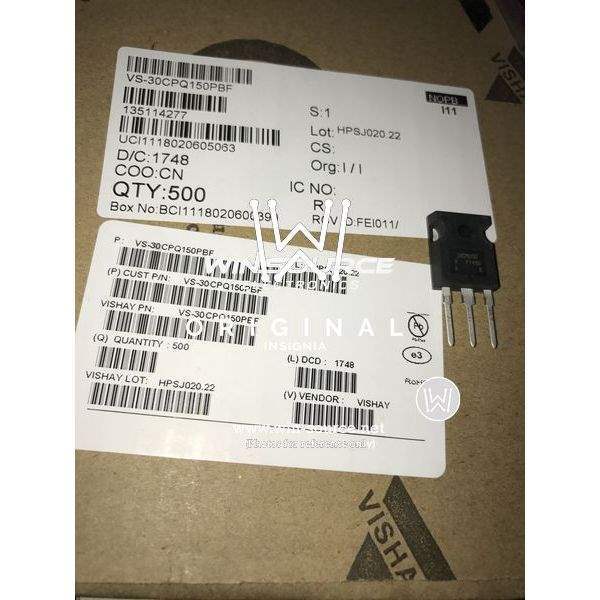

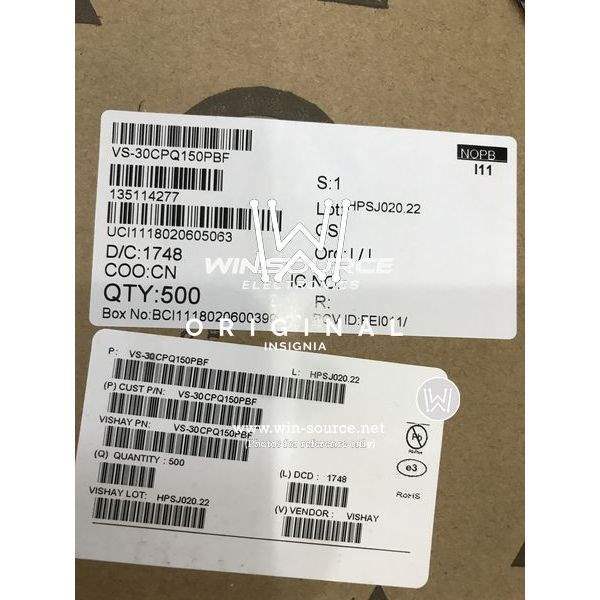

VS-30CPQ150PBF Vishay VS-30CPQ150PBF label picture VS-30CPQ150PBF real image
Same model may have multiple batches, images only for reference.
VS-30CPQ150PBF Vishay VS-30CPQ150PBF label picture VS-30CPQ150PBF real image
VS-30CPQ150PBF Vishay VS-30CPQ150PBF label picture VS-30CPQ150PBF real image
Same model may have multiple batches, images only for reference.

VS-30CPQ150PBF

Part No VS-30CPQ150PBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 150V TO247
Datasheet
VS-30CPQ150PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 150V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 1V @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 100μA @ 150V
Operating Temperature - Junction -55°C to 175°C
Mounting Through Hole
Case / Package TO-247AC
Win Source Part Number 141492-VS-30CPQ150PBF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 25
Ultra Librarian 3D Model Ultra Librarian VS-30CPQ150PBF CAD Model

Description

The VS-30CPQ150PBF is a Schottky diode from Vishay that is commonly used in various electronic devices.

  • Popularity Rating: medium
  • Supply and Demand: balance
  • Configuration: common cathode
  • Suitable for: circuits requiring stable and reliable diode
  • Voltage Rating: 150V
  • Current Rating: 15A
  • Suitable for: a wide range of applications
