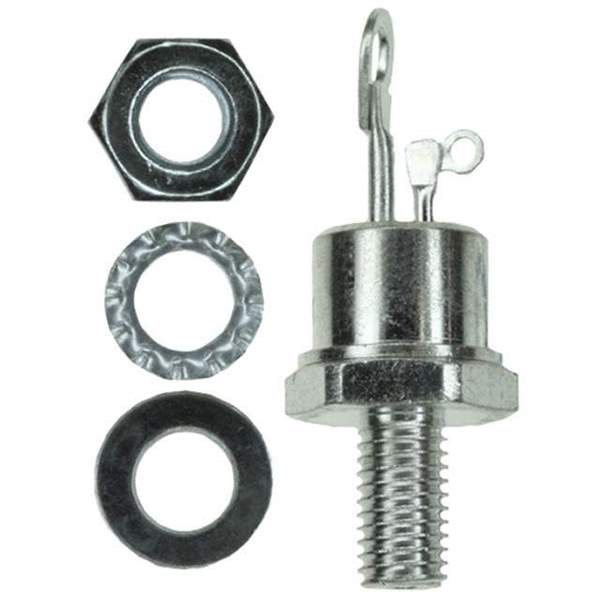

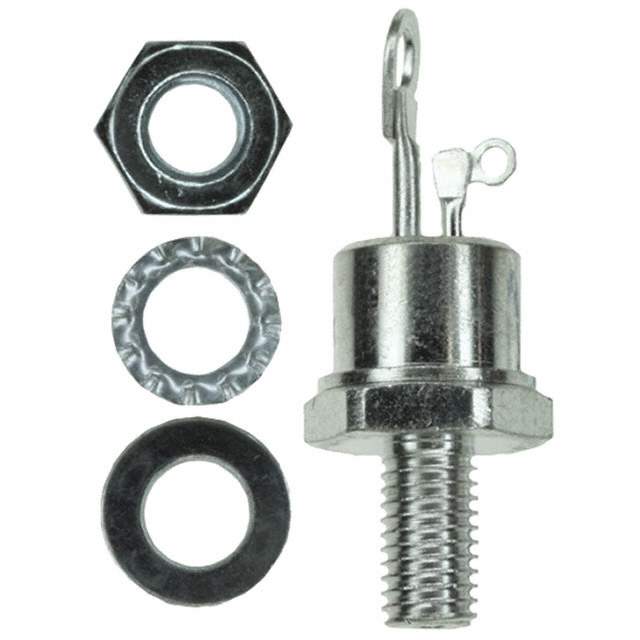

VS-2N692 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Manufacturer Vishay General Semiconductor - Diodes Division
Packaging Bulk
Voltage - Off State 800 V
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 40 mA
Voltage - On State (Vtm) (Max) 2 V
Current - On State (It (AV)) (Max) 16 A
Current - On State (It (RMS)) (Max) 25 A
Current - Hold (Ih) (Max) 20 mA
Current - Off State (Max) 2 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 145A, 150A
SCR Type Standard Recovery
Temperature Range - Operating -65°C ~ 125°C
Mounting Chassis, Stud Mount
Case / Package TO-208AA, TO-48-3, Stud
Supplier Device Package TO-208AA (TO-48)
Base Product Number 2N692
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Other Part Number VS2N692-ND,2N692,*2N692,VS2N692,VS-2N692-ND
Standard Package 100
Win Source Part Number 1324423-VS-2N692
Ultra Librarian 3D Model Ultra Librarian VS-2N692 CAD Model

Description

The Vishay General Semiconductor - Diodes Division 2N692 is a thyristor SCR with a maximum voltage off state of 800 V, maximum voltage gate trigger of 2 V, and maximum current on state of 16 A.

  • Maximum Voltage Off State: 800 V
  • Maximum Voltage Gate Trigger: 2 V
  • Maximum Current On State: 16 A
  • Type: Standard Recovery SCR
  • Mounting: Chassis or Stud
  • Current Hold (Ih): 20 mA
  • Maximum Current Gate Trigger (Igt): 40 mA
  • Maximum Current Off State: 2 mA
  • Maximum Current Non-Repetitive Surge 50, 60Hz (Itsm): 145A, 150A
  • Supplier Device Package: TO-208AA (TO-48)
  • Operating Temperature Range: -65°C ~ 125°C
