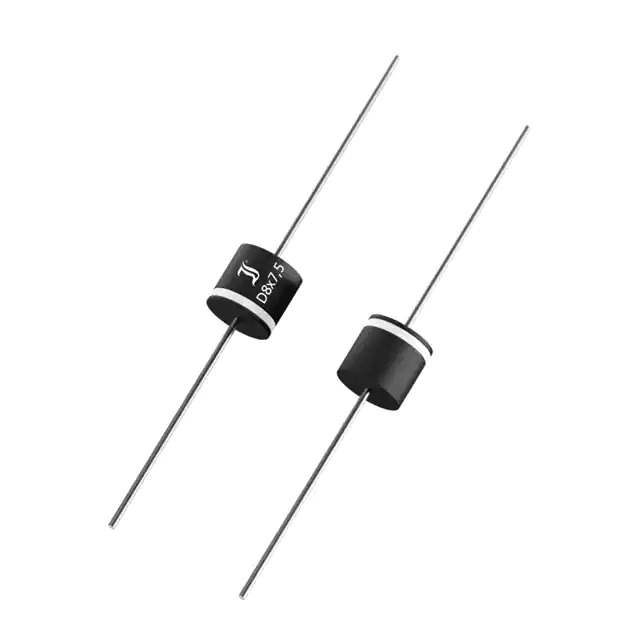

P600D Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 6A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 6 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.5 µs
Current - Reverse Leakage @ Vr 10 µA @ 200 V
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
Operating Temperature - Junction -50°C ~ 175°C
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
HTSUS 8541.10.0000
Win Source Part Number 651879-P600D
Ultra Librarian 3D Model Ultra Librarian P600D CAD Model

Description

The P600D is a standard recovery rectifier diode with a maximum reverse voltage rating of 200V.

  • Maximum Reverse Voltage Rating: 200V
  • Average Rectified Current: 6A
  • Forward Voltage Drop: 1.1V @ a forward current of 6A
  • Reverse Recovery Time: 1.5μs
  • Reverse Leakage Current: 10μA @ the maximum reverse voltage
  • Mounting: through-hole mountable
  • Package: P600
  • Packaging: tape and reel
  • Standard Package Quantity: 1,000 pcs
  • Status: active
  • Manufacturer: DIOTEC Electronics Corporation
  • Common Use: rectifier circuits
