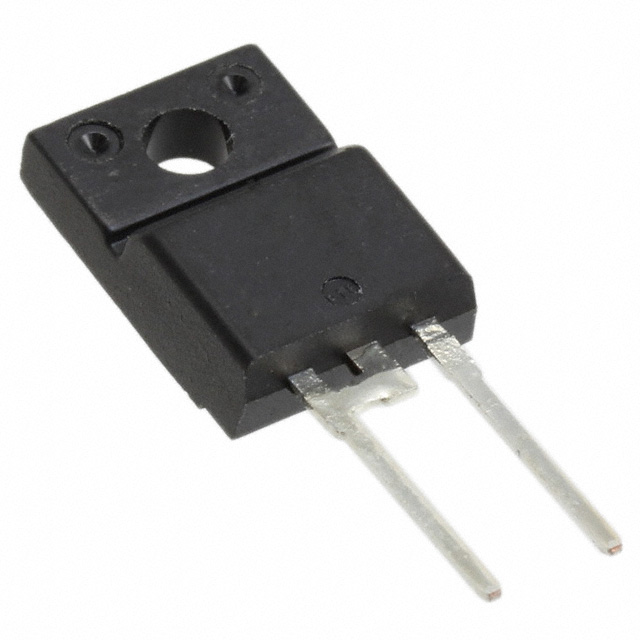

VS-20ETS12FPPBF Vishay
Same model may have multiple batches, images only for reference.

VS-20ETS12FPPBF

Part No VS-20ETS12FPPBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1.2KV 20A TO220FP
Datasheet
VS-20ETS12FPPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1200V (1.2kV)
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 20A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100μA @ 1200V
Mounting Through Hole
Case / Package TO-220AC Full Pack
Operating Temperature - Junction -40°C to 150°C
Win Source Part Number 043636-VS-20ETS12FPPBF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian VS-20ETS12FPPBF CAD Model

Description

The VS-20ETS12FPPBF is a standard diode manufactured by Vishay.

  • Manufacturer: Vishay
  • Voltage - DC Reverse (Vr) (Max): 1200V
  • Current - Average Rectified (Io): 20A
  • Voltage - Forward (Vf) @ If: 1.1V @ 20A
  • Current - Reverse Leakage @ Vr: 100μA @ 1200V
  • Operating Temperature Range: -40°C to 150°C
  • Mounting Type: Through-Hole
  • Application: Discrete Semiconductor Products
  • Supply and Demand Status: Balanced
  • Package Quantity: 50
