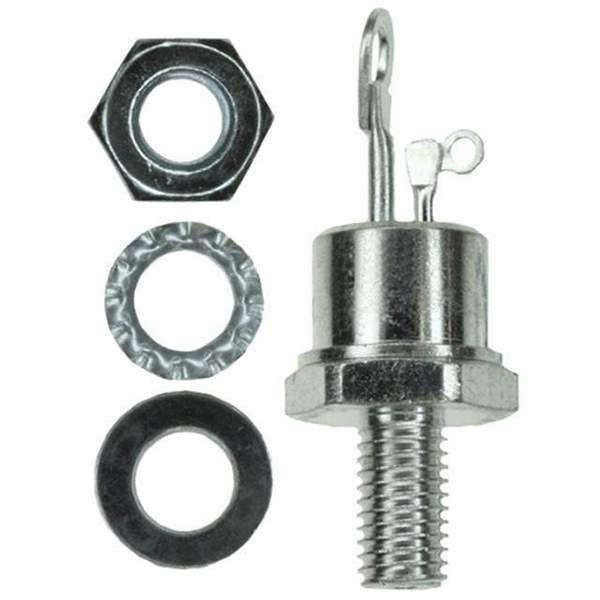

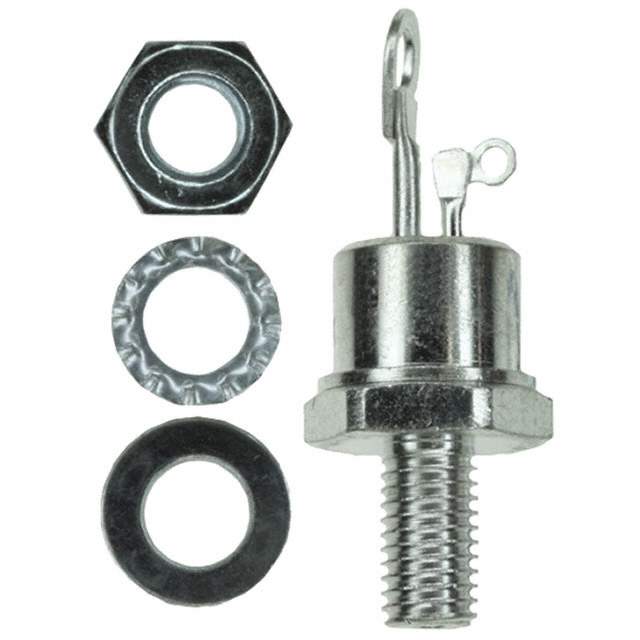

VS-10RIA60 Real Image
Same model may have multiple batches, images only for reference.

VS-10RIA60

Part No VS-10RIA60
Manufacturer Vishay
Catalog SCRs - Single
Description SCR 600V 10A TO-48
Datasheet
VS-10RIA60 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Voltage - Off State 600V
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 60mA
Voltage - On State (Vtm) (Maximum) 1.75V
Current - On State (It (AV)) (Maximum) 10A
Current - On State (It (RMS)) (Maximum) 25A
Current - Hold (Ih) (Maximum) 130mA
Current - Off State (Maximum) 10mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 225A, 240A
SCR Type Standard Recovery
Operating Temperature Range -65°C ~ 125°C
Mounting Chassis, Stud Mount
Package TO-208AA, TO-48-3, Stud
Manufacturer Package TO-208AA (TO-48)
Win Source Part Number 760172-VS-10RIA60
Popularity Medium
Supply and Demand Status Limited
Family Name VS-10RIA60
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-10RIA60 CAD Model

Description

The Vishay Semiconductor Diodes Division 760172-VS-10RIA60 is a standard recovery SCR that has a voltage off state of 600V.

  • Current On State (It (AV)): 10A (Maximum)
  • Voltage Gate Trigger (Vgt) (Maximum): 2V
  • Current Gate Trigger (Igt) (Maximum): 60mA
  • Current Non-Rep. Surge 50, 60Hz (Itsm): 225A, 240A
  • Current Hold (Ih) (Maximum): 130mA
  • Current On State (It (RMS)) (Maximum): 25A
  • Voltage On State (Vtm) (Maximum): 1.75V
  • Package: TO-208AA (TO-48)
  • Operating Temperature Range: -65°C to 125°C
  • EOL Date: 2026 (Estimated)
