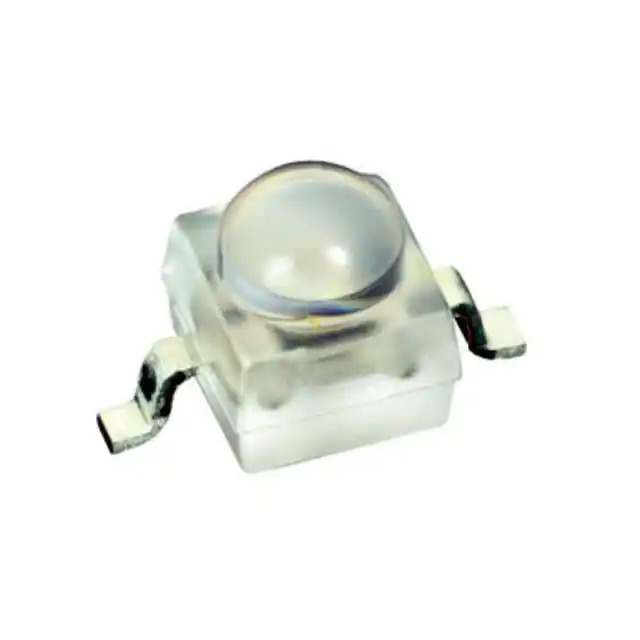

VEMD2523X01 Vishay
Same model may have multiple batches, images only for reference.

VEMD2523X01

Part No VEMD2523X01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE 790 TO 1050 NM
Datasheet
VEMD2523X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photodiodes
Mfr Vishay Semiconductor Opto Division
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Wavelength 900nm
Color - Enhanced -
Spectral Range 350nm ~ 1120nm
Diode Type PIN
Responsivity @ nm -
Response Time 100ns
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Dark (Typ) 1nA
Active Area 0.23mm²
Viewing Angle 70°
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Surface Mount
Package / Case 2-SMD
Base Product Number VEMD2523
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 1372043-VEMD2523X01
Ultra Librarian 3D Model Ultra Librarian VEMD2523X01 CAD Model

Description

The VEMD2523X01 is an optical sensor photodiode designed for automotive applications.

  • Temperature Range: -40°C to 100°C
  • Diode Type: PIN
  • Reverse Voltage (Max): 60V
  • Response Time: 100ns
  • Viewing Angle: 70°
  • Spectral Range: 350nm to 1120nm
  • Mounting Type: Surface Mount
  • Package: 2-SMD
  • Series: Automotive, AEC-Q101
